Shielded connectors as protection against unwanted electromagnetic influences, in order to meet the interference-free signal and current supply requirements of the industry.

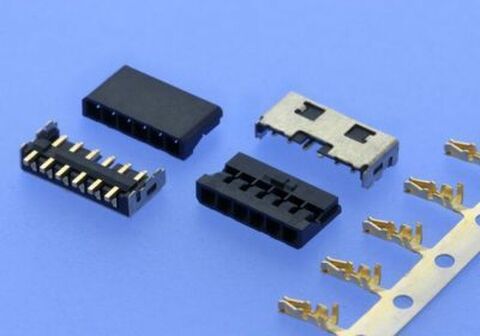

The shielding of the series 5692 is achieved by a circumferential metallic housing made of steel, which is connected with a clip to the insulator of the pin header. This shielding plate, which is already integrated, is soldered directly to the PCB and its design satisfies the requirement for the protection of surrounding areas. This means that sensitive signals can be transmitted with low interference and also received just as clearly.
Features:
| Shell | Stainless steel |
|---|---|
| Insulator | Thermoplastic, rated UL94 V-0, halogen-free |
| Colour | Black |
| Contact Material | Copper alloy |
| Contact Surface | Acc. to options (see below), over Ni |
| Applicable wire | AWG 30 ~ 24 |
| Contact Resistance | < 20 mΩ |
| Insulation Resistance | > 500 MΩ |
| Test Voltage | 500 V AC/DC |
| Voltage Rating | 50 V AC/DC |
| Current Rating | 3.5 A max. |
| Temperature Range | -25 °C … +85 °C |
| Processing | 260 °C max. for 10s max. |
