Interface connectors between the carrier board and the SMARC® and Qseven® or embedded GPU modules,

28/06/2024

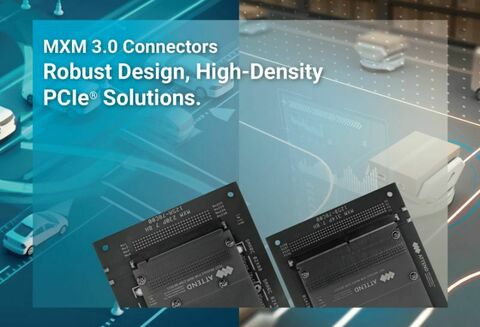

We're thrilled to launch our 125B-78C00 and 125A-78C00 MXM connectors! These high-density PCIe® solutions are perfect for advanced server system architectures.

  • Interfaces with SMARC®, Qseven®, or embedded GPU modules for seamless I/O signal transmission.
  • 0.50 mm pitch and 314 contacts save PCB space, ideal for compact designs.
  • Small form factor, low-power, high-performance for high-speed peripherals.
  • Excels in AI applications, supporting edge AI accelerators and AI-powered industrial controllers.

Main Features

  • Compatible with the MXM 3.0/2.0 standard
  • Mating area: 0.5 mm pitch, space-saving
  • 7.8 mm height, module board mating height 5.0 mm from main board
  • Carrier connector 230 pins for Qseven specification
  • Ready for M2.5 nut and screw installation
  • Excellent signal integrity such as USB, SATA , PCIe , LVDS , eDP , MIPI , and Ethernet
Documents Tech question
