Innovative Supercapacitors & Supercap modules

Hybrid-Supercaps Small footprint, High power energy storage devices ideal for host of energy and industrial applications

Eaton HS hybrid supercapacitors are small-footprint, high-power energy storage devices ideal for a host of energy and industrial applications. Eaton’s HS supercapacitors comprise new proprietary materials. Each supercapacitor has two electrodes, one similar to that of a battery and one a standard supercapacitor electrode. Consequently, their energy densities are closer to those of conventional batteries and up to 10 times higher than standard supercapacitors.

Each hybrid cylindrical cell offers between 10 F and 220 F of capacitance with a maximum working voltage of 3.8 V, an operating temperature range from -25 °C to +70 °C, and ultra-low ESR. HS supercapacitors can be utilized as sole energy storage or alongside batteries to optimize system cost, lifetime, and runtime. While HSL supercapacitors are optimized for lower temperatures, going down to -25 °C, HS supercapacitors have an extended range to +85 °C and are optimized for higher temperatures.

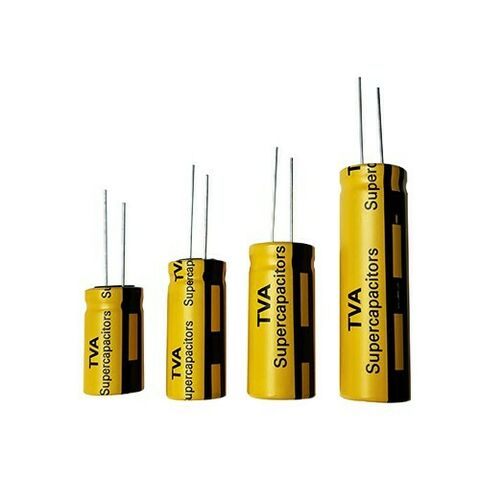

TVA cylindrical supercapacitors with AEC-Q200 qualification

Suited for automotive applications, providing high reliability, low resistance, and long life. Eaton’s TVA family of supercapacitors are adapted from the highly reliable TV family which has been produced since 2016. Automotive-grade TVAs are ideal for delivering high-density power throughout modern vehicles (e.g., boardnet stabilization, electric door locks, e-call, and video recorder backup power).

Supercap key products:

• Coin cells
• Cylindrical cells
• Modules

• Large cells

• Hybrid cells
