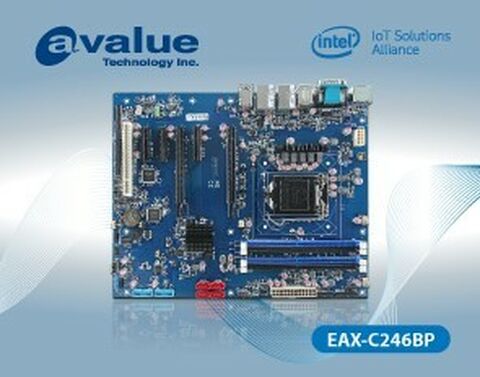

Industrial and embedded ATX motherboard with Intel C246 chipset

18/09/2020

Avalue introduced the EAX-C246BP, based on Intel® 8/9th Generation Core™ and Celeron® Processors. EAX-C246BP, an ATX board with 8/9th Gen Intel® Core™ i3/i5/i7 and Celeron® SoC Processor, which has a rich IO (6 x USB 3.1 Gen2 and 4 x USB 3.1 Gen1) industrial motherboard requires less expansion application for Automation, Industrial, Automatic Medicine Packing Machine and other embedded applications.

Documents Tech question
Avalue EAX C246 BP

Industrial and embedded ATX motherboard with Intel C246 chipset

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents

Features:

  • Intel® LGA1151 Socket Supports 8/9th Gen. Core™ i7/ i5/ i3, Pentium® and Celeron® Processors (Max. TDP at 95W)
  • Four 288-pin DDR4 2400/2666MHz DIMM Socket, Supports Up to 64GB Max (ECC memory supported by CPU)
  • 1 x DVI-I, 1 x DP++, 1 x DP++
  • 1 x Intel® i210AT & 1 x Intel® i219LM Gigabit Ethernet
  • 6 x USB 3.1 Gen2, 4 x USB 3.1 Gen1, 4 x USB 2.0
  • 8 x RS-232, 2 x RS-232/422/485, 16-bit GPIO
  • Onboard Infineon SLB9665 TPM 2.0
  • 2 x PCI-e x16 slot for 1 x PCI-e x16 or 2 x PCI-e x8 (By Auto switch IC), 3 x PCI-ex4, 1 x PCI
  • ATX power

Applications & Markets

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • 7 Io T Industry 4 0

    IIoT & Industry 4.0

  • 4 Medical Healthcare Fitness

    Medical, Healthcare & Fitness

Technologies

  • Shutterstock 660745639

    Industrial & embedded motherboards

Avalue

Avalue Technology is a professional industrial computer manufacturing company, who is dedicated to developing the x86 and RISC architecture products.

Read more
Avalue Logo

Documents

  • EAX-C246BP
