I/O Isolation up to 5000VAC for energy system applications

06/03/2020

New MIE10-HI series of 10W DC/DC converters with ultra-high isolation power solutions. The MIE10-HI Series is consists of 24 models offering 9-18, 18-36 or 36-75 VDC input ranges with single output models ranging 3.3-24 VDC and dual output models ±12V, ±15V delivering 10 watts of output power.

Further features include I/O Isolation of 5000VAC, high average efficiency up to 88%, operating ambient temperature range of -40°C to +90°C, no minimum load requirement, built-in EMC filter for EMI emission EN55032 Class A without additional components required, and under-voltage/overload/voltage/short-circuit protection.

All models have been qualified per the CB scheme with safety approvals to UL/cUL/IEC/EN 62368-1 standards.

Documents Tech question

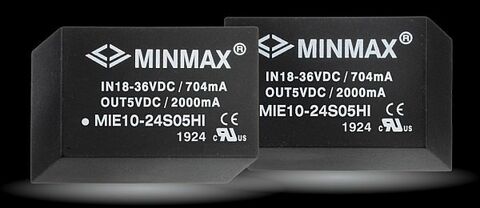

Minmax MIE10 HI

I/O Isolation up to 5000VAC for energy system applications

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents

Features:

  • Industrial Standard DIP-24 Package
  • Wide 2:1 Input Voltage Range
  • Fully Regulated Output Voltage
  • Ultra-high I/O Isolation 9000VDC with reinforced Insulation, rate for 1000Vrms Working Voltage
  • Common Mode Transient Immunity: 15kV/μS
  • Operating Ambient Temp. Range -40℃ to +90℃
  • No Min. Load Requirement
  • Under-voltage, Overload/Voltage and Short Circuit Protection
  • EMI Emission EN 55032 Class A & FCC Level A Approved
  • UL/cUL/IEC/EN 62368-1 Safety Approval & CE Marking

Applications & Markets

  • 2 Energy Utilities

    Energy & Utilities

Technologies

  • Shutterstock 2049802019 Converted

    DC/DC converters

MinMax

Minmax is a specialist in the design and manufacturing of DC-DC converters & AC-DC power supplies for ITE, Railway, Renewable energy and medical applications.

Read more
Minmax Logo

Documents

  • MIE10-HI Datasheet
