High-Voltage 8-Channel Stepper Motor Driver

15/11/2024

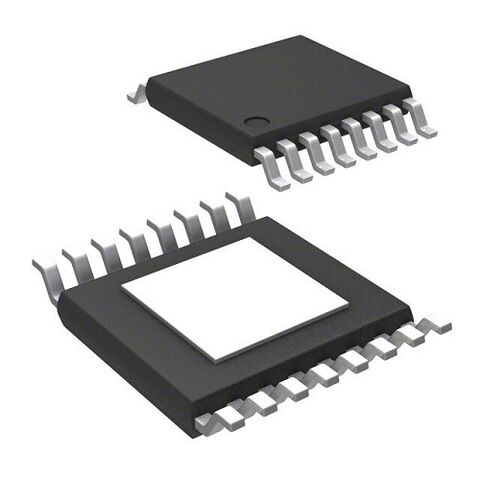

The 3PEAK TPM8860 is a versatile 48V, 8-channel smart low-side driver array designed for driving various inductive, resistive, and capacitive loads. With integrated diagnostics, protection features, and support for high-speed communication, this IC is well-suited for applications such as stepper motor control, relays, solenoids, and industrial automation systems.

  • High-Voltage Operation: The TPM8860 supports up to 48V maximum operating voltage, enabling the control of high-power motors and inductive loads.
  • Channel Control: Each of the 8 output channels can be controlled individually through a 16-bit shift register interface.
  • Protection Features: The driver includes comprehensive protection mechanisms such as over-current, short-circuit, over-temperature, and open-load diagnostics, ensuring robust operation in harsh environments​.
  • Integrated Free-Wheeling Diodes: Each of the 8 low-side drivers includes free-wheeling diodes to handle inductive loads such as motors and solenoids, making it a suitable choice for stepper motor control.
  • Daisy-Chain Communication: The shift register-based communication interface allows multiple TPM8860 devices to be connected in a daisy-chain configuration, reducing MCU I/O requirements and enabling simplified system designs.
  • High-Speed Data Transfer: With a 10 MHz, 16-bit serial interface, the TPM8860 supports high-speed communication for real-time control in precision motor applications .

Main Features

  • 500 mΩ Low RDS(ON): Provides efficient switching performance with a maximum 1.5A driver capability per channel
  • Integrated Free-Wheeling Diodes: Protects the system when driving inductive loads such as motors and solenoids
  • Parallel Channel Driving Capability: Allows multiple channels to be driven simultaneously for higher current applications
  • High-Speed Interface: 10 MHz, 16-bit shift register interface with built-in input noise filtering, supporting daisy-chain communication for easy system expansion
