High-Efficiency Switching Power Supply 750W

23/12/2022

N2Power leads the power density race with its high-efficiency XL750 Series AC -DC power supplies, which provide up to 94% efficiency. In fact, comparisons of efficiencies show that our supplies can reduce energy losses by up to 50%. Our advanced technology yields a very small footprint and offers the highest power density in its class. This unique design also generates less wasted heat—reducing the need for forced air cooling, decreasing AC power consumption, increasing reliability, and maximizing its economy of operation. By building our power supplies with a focus on maximizing efficiency, we can provide our valued customers with reduced energy costs, longer product lifespans, and a greater return on their investment.

Main Features

  • High-Efficiency–up to 94%
  • Form factor 4” x 7” x 1.85” (1.91” with top cover)
  • With P.F.C. function > 0.95
  • 5 V standby 1.0 A supply
  • Auxiliary 12 V / 1.0 A fan supply
  • I2 C / PMBusTM interface for digital power management
  • Active current sharing for N, N+1
  • Built-in OR-ing MOSFET for N, N+1
  • U-Frame, U-Frame with top cover
  • Maximum output: 750W with 25 CFM fan or 300W with unobstructed convection cooling(1)
  • Pending UL / IEC / EN 62368 Safety Approvals
  • Three-year warranty
Documents Tech question

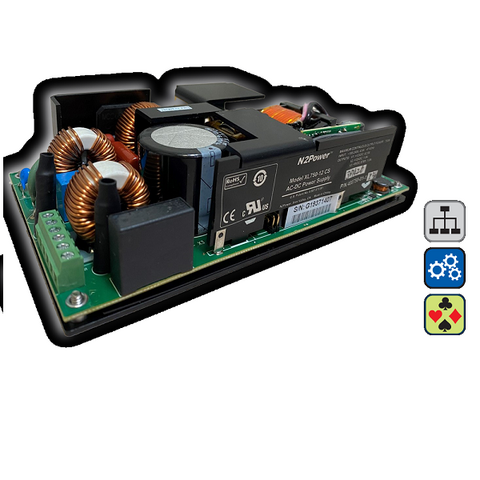

N2 Power XL750 series

High-Efficiency Switching Power Supply 750W

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 20 Entertainment Gaming

    Entertainment & Gaming

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

Technologies

  • Shutterstock 1026772606

    AC/DC power supplies

N2Power

N2Power is a leading design and manufacturer of high reliable, ultra-small, energy-efficient and environmentally friendly power supply units.

Read more
N2 Power Logo

Documents

  • N2 Power xl750 ac dc datasheet
