Main Features
MPM3698:
- Wide 4.5V to 16V Operating Input Voltage (VIN) Range
- 0.4V to 3.3V Output Voltage (VOUT) Range
- 12-Phase, Dual, Digital Control Loops
- Single Peak 120A or Dual Peak 80A + 40A Output
- Up to 3MHz Switching Frequency (fSW)

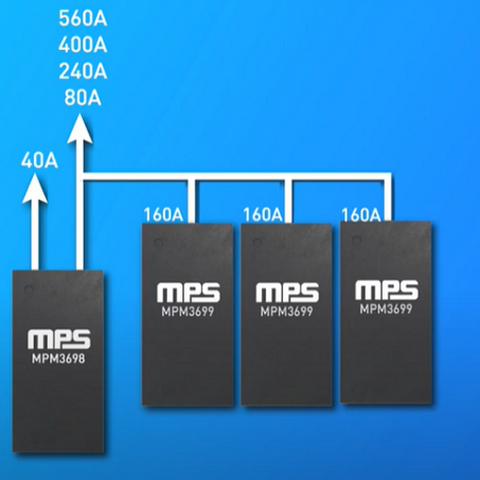

- Parallel with 160A Power Block Module (MPM3699) for Higher Output Current (IOUT)
- Automatic Loop Compensation
MPM3699:
- Wide 3V to 16V Operating Input Voltage (VIN) Range
- Up to 160A of Peak Output Current (IOUT)
- Accu-SenseTM Current Sense
- Temperature Sense
- Accepts Tri-State Pulse-Width Modulation (PWM) Signals
