- Single Feed Stacked Patch Assembly Covering Bands:
- GPS L1 & L5
- BeiDou B1
- Galileo E1 & E5a
- GLONASS G1
- IRNSS L5
- Pin Mount
- Dimensions: 25*25*8.12mm
- RoHS & REACH Compliant
This browser is not fully supported.
Alcom electronics appreciates the potential business relationship between our parties. Thank you! We want to make sure we address only the mailings that are valuable to you.

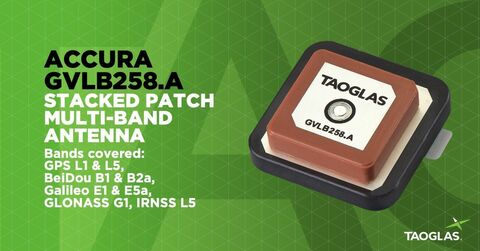

The Taoglas Accura GVLB258.A, is a dual-band GNSS L1/L5, high-performance antenna for high precision GNSS accuracy and fast positioning. It utilizes a 25*25*8mm advanced wide-band dual-stacked ceramic patch antenna with optimized gain for GPS L1/L5, Galileo, GLONASS and BeiDou bands.
The GVLB258.A has been tuned and tested on a 70 x 70 mm ground plane and exhibits excellent radiation patterns. The GVLB258.A has been optimised to cover the bands required for the next generation of L1/L5 GNSS receivers that are currently on the market.
Taoglas is the world’s leading provider of next-generation IoT solutions, combining the latest in high-performance RF antenna with advanced positioning, imaging, audio and artificial intelligence technologies for companies with unique IoT challenges.
