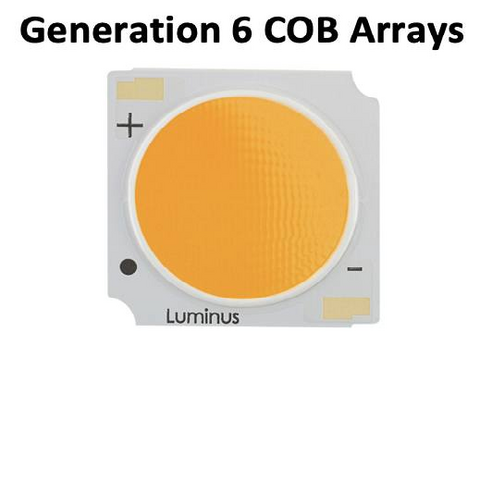

Generation 6 COB Arrays

15/09/2023

Generation 6 COBs with industry leading efficacy exceeding 150 lumens per Watt (lm/W) at 3000K, 90 CRI, with the highest reaching over 184 lm/W at Tj=85°C. The use of traditional nitride phosphors in the Gen 6 COBs delivers high reliability and an expanded operating range as well as chromaticity stability over temperature, current, and time. These COBs are ideal for lighting applications including retail, hospitality, residential, commercial, museum, high and low bay lighting, and more. Special color options, such as Sensus™ below the black body curve for whitening warm color temperatures, AccuWhiteTM color rendering to 97 CRI typical, and hospitality color points are all available. With Light Emitting Surface (LES) sizes that range from 4mm to 32mm available in a full range of color temperatures and CRIs, these COBs can be used effectively for both indoor and outdoor applications. LM-80 testing confirmed the parts are capable of achieving Design Lights Consortium (DLC) premium lumen maintenance requiring greter than 90% lumen maintenance for over 36,000 hours of operation.

Main Features

  • Typical efficacy >152 LPW, 3000K 90CRI, highest reach 184LPW
  • Complete LES and Lumen outputs
  • AccuWhiteTM Color rendering to 97CRI typ.
  • SensusTM and Xtreme SensusTM Pure White
  • UL and IEC qualified
  • Widest range of CCT/CRI combinations
  • Enhanced efficacy reduces power consumption
  • Source optimized for beam characteristics and optics selection
  • Engineered to achieve highest color rendering and optimum appearance
  • Pure white color rendering with enhanced color saturation
  • Pre-certified to fast track fixture qualifications
Documents Tech question
Luminus Gen6 cob arrays

Generation 6 COB Arrays

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • Shutterstock 599865098

    Smart retail

Technologies

  • Shutterstock 767486674

    LED light sources

Luminus

Luminus Devices develops and manufactures solid-state lighting solutions to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination.

Read more
Luminus Logo

Documents

  • Luminus CXM 6 GEN6 Datasheet
