Gender-Neutral Connectors

03/12/2021

“Gender-free” PCB connector systems are already well-established on the market and offer an array of advantages. For example, production costs can be reduced when both sides of the connector system have identical geometries, while high-speed properties are improved by the use of a single contact point. However, ept’s decision to develop this type of connector system is based on more than just these two advantages.

Main Features

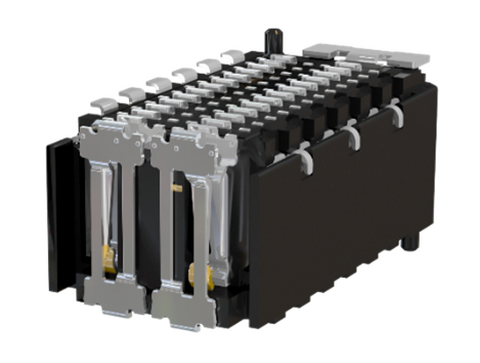

Unlike conventional SMD connectors that establish contacting through a blade contact and a spring contact, our shielded Zero8 PCB connector has a blade contact and also a spring contact on each pair of connectors (plug or socket). With this reliable connection technology, this connector in 0.8 mm pitch ensures double contacting on a single pin and establishes high redundancy and thus maximum contact reliability. As a result, the gender-neutral contact system ensures safe, robust and gas-tight contacting despite external influences such as shocks, vibrations, thermal cycles and noxious gas. With a very high tolerance compensation of 0.4 mm when mated, the gender-neutral contact system of the Zero8 connector thus has a floating functionality and makes the connector particularly scalable.

Documents Tech question

Gender-Neutral Connectors

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents

The geometry of the insulating housing is also designed in such a way that the contacts are submerged in the insulating body and are thus protected in such a way that damage to the contacts becomes virtually impossible. In addition, the geometry reliably prevents the contacts from being mated incorrectly.
