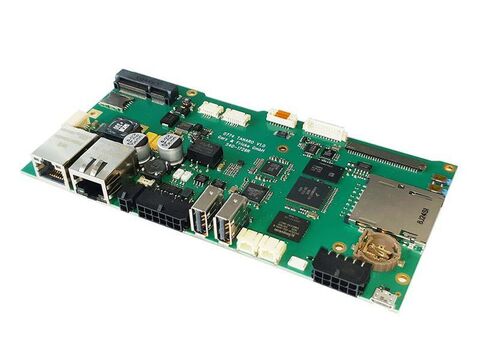

With the TANARO Single Board Computer (SBC) Garz & Fricke introduced the latest member of its product family of Single Board Computers, which was designed for industrial image processing. The SBC model is equipped with the current processor generation NXP i.MX8M Mini. The Quad Core Cortex-A53 processor system from NXP is manufactured using the latest 14LPC FinFET process. This guarantees optimum performance with low power consumption. At the same time, no wishes remain unfulfilled, even with extremely high requirements regarding operating temperature.
CPU | |
| CPU Type | i.MX8M Mini |
| Core Class | ARM Cortex – A53 / Cortex – M4 |
| Core Clock | 1.8 GHz |
| Cache | L1 cache: 32 KB for instruction and data caches per core; 512 KB L2 cache |
| HW Accelerators | OpenGL ES 2.0 |
| RTC | Accuracy: +/- 30 ppm at 25°C |
Memory | |
| Memory | 4 GB MLC eMMC |
| RAM | 1 GB 32 bit LPDDR4 |
| SD-Card Slot | 4 bit MMC/SDIO/SD/SDHC |
Operating Systems | |
| Supported OS | Android, Linux Yocto |
Communication Interfaces | |
| Network | 1x 100 Mbit/s, 1x 1GB/s (RJ-45); |
| USB | 1x 480 Mbit/s Host (Type A), 1x 480 Mbit/s OTG (Type Micro-AB) |
| CAN | 1x CAN (ISO/DIS 11898) galvanic isolated |
| RS-485 | 1x RS-485 (Full duplex) galvanic isolated |
| RS-232 | 2x RS-232 (RX/TX/CTS/RTS) |
| Modem | Wifi/BT4.0 or 3G/4G mPCIe card (Option) |
Audio | |
| Speaker output | 1x speaker (connector), 1 W RMS (8Ω) parallel to internal speaker |
| Audio Internal | 1x speaker connector |
Device Dimensions | |
| W x H x D | 159.0 x 18.0 x 80.0 mm |
Power Supply | |
| Supply | Nom. 9 to 32 V DC |
Typical Environmental Conditions | |
| Storage Temp. | -20…+70 °C |
| Operating Temp. | 0…+60 °C |
Expansion Connector | |
| Interfaces | PCIe Mini connector (for half size card) |
Display and Touch | |
| Display Interface | Dual Channel LVDS, TTL 24bit |
| Touch Interface | PCAP I²C |
| Backlight Interface | +12 V, +5 V, on/off, PWM |
Order Information | |
| Order Code | 900-4325R |
