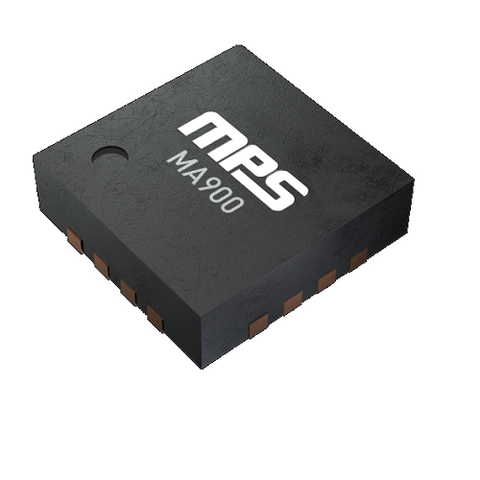

Fully Differential, Magnetic Digital Angle Sensor with Stray-Field Immunity

13/09/2024

The MA900 is a contactless, precision, magnetic absolute angle position sensor. The angle is extracted from the magnetic field differences at several locations on the sensor IC. This differential method eliminates the contribution of parasitic magnetic field and is well-suited for sensors positioned at the end-of-shaft with a simple target magnet. For fast data acquisition and processing, the MA900 provides accurate angle measurements at speeds from 0rpm to more than 100,000rpm.

The MA900 features magnetic field strength detection with configurable thresholds to sense the magnet proximity, which can be used to sense the knob's axial position or for diagnostics.

Main Features

  • Absolute Angle Encoder
  • ±0.02° RMS Noise at 3kHz Bandwidth
  • Robust Against Parasitic Stray Fields Exceeding 4kA/m DC or 5mT
  • Zero Lag
  • Serial Peripheral Interface (SPI) or I2C Serial Interface for Digital Angle Readout and Chip Configuration
  • ABZ Quadrature Encoder Interface with Configurable Pulses-per-Turn (PPT)
  • UVW Interface with 1-to-8 Pole Pair Emulation
  • Configurable Magnetic Field Strength Detection for Diagnostic Checks
  • Dedicated Push-Button Interface
  • 5V or 3.3V Supply
  • 12mA Operating Current
  • -40°C to +150°C Operating Temperature
  • Available in a QFN-16 (3mmx3mm) Package with Wettable Flanks
Documents Tech question
MPS MA900

Fully Differential, Magnetic Digital Angle Sensor with Stray-Field Immunity

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • 14 Aerospace Mil

    Aerospace & Mil

Technologies

  • Shutterstock 1042297726

    Magnetics, inductors & transformers

Monolithic Power Systems

Monolithic Power Systems provides small, highly energy efficient, easy-to-use power solutions for systems found in industrial applications, telecom infrastructures, cloud computing, automotive, and consumer applications.

Read more
Monolithic Power Systems Logo

Documents

  • MPS MA900 product sheet
