Frame core chockes for power lines

11/03/2022

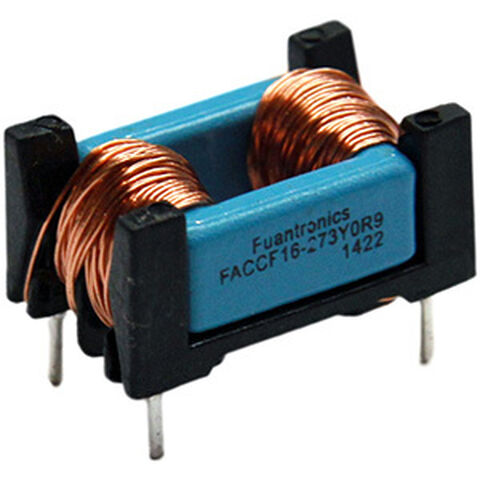

FACCF16 series :

  • Rated current: Lr at 50Hz and Ta=40°C
  • Rated voltage: 250VAC
  • Clearance and creepage distance: >3mm
  • Lead speacing: 18.75 x 10.0 +/-0.2mm
  • Climatic category 40/125/56 (to IEC 60068-1)
  • Excelent defferential-mode suppression
  • Weight: approximately 9g

FACCF23V series :

  • Rated current: 0.7 A to 2.3 A
  • Rated voltage: 250VAC
  • Turns ratio: N1:N2=1:1+/-2%
  • Hi-Pot: Pri-Sec: 1500VAC/5mA/2second
  • Test frequency responce: 10KHz 100mV
  • Operating temperature range: -40°C to +120°C
  • Inductance tolerance: +50/-30% at 20C
  • All parts meet RoHS compliance
  • Weight: approximately 17g

FACCF23BV series :

  • Rated current: 0.7 A to 2.3 A
  • Rated voltage: 250VAC
  • Turns ratio: N1:N2=1:1+/-2%
  • Hi-Pot: Pri-Sec: 1500VAC/5mA/2second
  • Test frequency responce: 10KHz 100mV
  • Operating temperature range: -40°C to +120°C
  • Inductance tolerance: +50/-30% at 20C
  • All parts meet RoHS compliance
  • Weight: approximately 19g

FACCF23BH series :

  • Rated current: 0.7 A to 2.3 A
  • Rated voltage: 250VAC
  • Turns ratio: N1:N2=1:1+/-2%
  • Hi-Pot: Pri-Sec: 1500VAC/5mA/2second
  • Test frequency responce: 10KHz 100mV
  • Operating temperature range: -40°C to +120°C
  • Inductance tolerance: +50/-30% at 20C
  • All parts meet RoHS compliance
  • Weight: approximately 19g
Documents Tech question
Download

Frame core chockes for power lines

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 27 White Goods Home Appliances

    White Goods & Home Appliances

  • 17 Home Building Automation

    Home & Building Automation

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • 4 Medical Healthcare Fitness

    Medical, Healthcare & Fitness

  • 1 Lighting Illumination

    Lighting & Illumination

Technologies

  • Shutterstock 2035174493

    EMC/EMI/RFI filters

Fuantronics

Fuantronics is a world leading company in high quality products including ferrite cores, bobbins, coils, transformers, inductors, and sensors.

Read more
Fuantronics Logo

Documents

  • FACCF16
  • FACCF23 V
  • FACCF23 H
  • FACCF23 BV
  • FACCF23 BH
