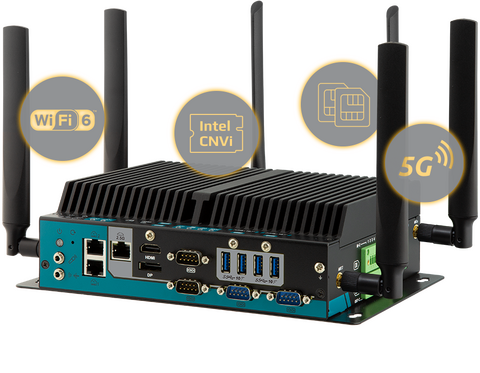

Fanless Rugged Controller with 11th Gen. Intel® Core™ i Processor

15/10/2021

ARES-1980 Industrial Embedded Controller powered by the 11th Gen. Intel® Core™ processor for a myriad of high-performance applications. ARES-1980 has integrated high speed I/O connectivity, including USB 3.2 Gen 2, 2.5GbE Ethernet and more, Independent ports are also implemented to maximizing power delivery and data bandwidth, allowing high speed peripherals to take full advantage of the connectivity.

Main Features

  • Onboard Intel® Core™ i Processor (Tiger Lake UP3)
  • Support 2 x 260-pin DDR4 SO-DIMM sockets
  • Support 5G (Sub-6G) module, M.2 NVMe SSD Gen3x4, USB 3.2 Gen 2, and 2.5 GbE LAN
  • Rich I/O: 4 x COM/ 3 x LAN/ 4 x USB3.2/ Remote PWR
  • Support Triple-display (DVI-D/HDMI/DP)
  • Wide Power Input: 9~36 VDC
  • Power on/off delay control / configurable ignition power control
  • Support DirectX 12
Documents Tech question
ARES 1980 FL 5 G

Fanless Rugged Controller with 11th Gen. Intel® Core™ i Processor
