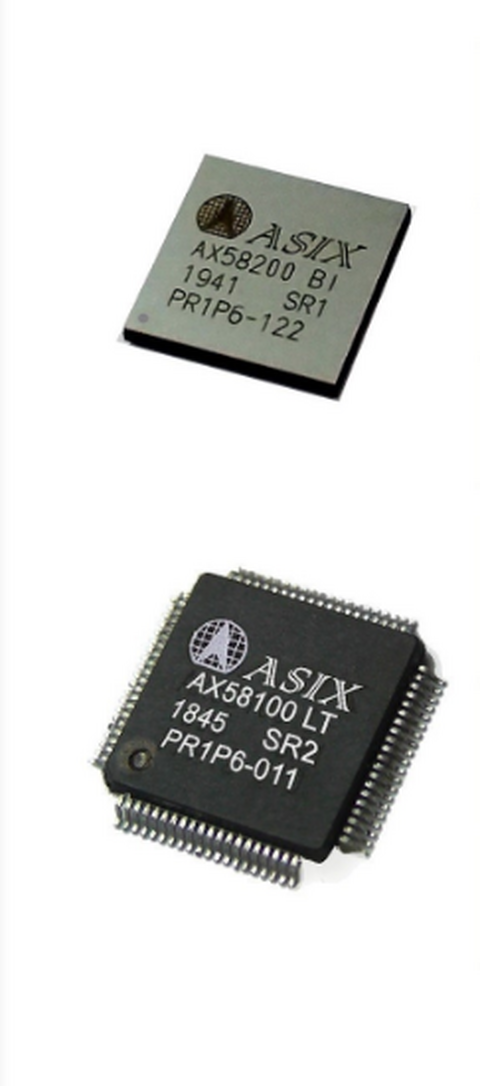

AX58x00 family EtherCAT slave product provide designers an easy-design, small package size and cost-efficient Industrial Ethernet EtherCAT slave controller solution, and is suitable for motor/motion control, digital I/O control, sensors data acquisition, robotics, EtherCAT IO-Link master, EtherCAT Junction slave module, etc. industrial automation fieldbus applications.
The EtherCAT (Ethernet for Control Automation Technology) is a real-time, deterministic, high performance and open industrial Ethernet network protocol and can ensure the data transmission certainty and real-time by using a unique principle called “Processing on the fly”. The EtherCAT network can also be installed by using an existing Ethernet network environment directly so it can be implemented on an existing factory network environment much easier and cheaper.
| Part n° | Processor | On-Chip Flash (Bytes) | On-Chip Data RAM (Bytes) | On-Chip Boot Loader ROM (Bytes) | Security Protection ROM ( Bytes) | USB OTG | Ethernet MAC |
| AX58200 | ARM Cortex-M4F 192Mhz | 512K Dual Bank | 160K | 32K | 4K | HS | 10/100 Mbps (w/RMII, H/W Cryptography) |
| AX58100 | – | – | – | – | – | – | – |
| Part n° | ESC Fast Ethernet | ESC RAM (Kbytes) | ESC FMMU | ESC Sync Managers | ESC Disturbed Clock | Package/size | Temperature Range |
| AX58200 | 2x Internal PHY
1x MII | 9 | 8 | 8 | 64-bit | HSFBGA-144
10×10 mm 0.8mm pitch | -40~+85
-40~+105 |
| AX58100 | 2x Internal PHY
1x MII | 9 | 8 | 8 | 64-bit | LQFP-80
12×12 mm | -40~+105 |
ASIX Electronics Corp. is a leading fabless semiconductor supplier with focus on networking, communication and connectivity applications.
