The lowest power Real Time Clock modules

14/02/2020

Epson’s wide range of Real Time Clock Modules (RTC) with built-in XTAL save power, provide superior accuracy, and simplify system design. Thanks to a rich set of optional functions, such as alarms and time stamps, RTCs can cover multiple additional tasks beside the time keeping.

RX8111CE
Time stamp function and Low current consumption

RX4111CE
SPI, Time stamp function and Low current consumption

RX8130CE
Built-in backup battery charge control function

RX8804CE
Built-in 32.768 kHz DTCXO, High Stability, up to +105 °C

RX8900CE
Built-in 32.768 kHz DTCXO, High Stability, Power switching

Documents Tech question

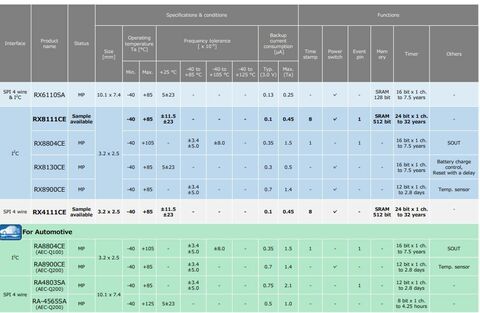

Epson rtc specs Epson rx8900 real time clock module

The lowest power Real Time Clock modules

  • Features
  • Technologies
  • Manufacturer
  • Documents

• The Low Power consumption configuration allows the Real Time Clock module to record timekeeping and system abnormalities on its own even when the main MCU is into sleep mode.
• Some products have a built-in temperature-compensated oscillator to guarantee and manage high-precision date and time information using only Real Time Clock module.
• AEC-Q100/200 compatible products are also available.

Technologies

  • Screenshot 2022 05 04 130706

    Timing & frequency control

Epson

Epson Electronics is a world leading manufacturer of Semiconductors, Sensors, Sensing Systems and Timing Devices targeted to all markets like industrial, automotive, medical and communication.

Read more
Corporate Logo R

Documents

  • Epson RX4111 CE Datasheet
  • Epson RX8111 CE Datasheet
  • Epson RX8130 CE Datasheet
  • Epson RX8804 CE Datasheet
  • Epson RX8900 CE Datasheet
  • Epson recommended new product overview
