EM510 MiniMo® Programmable IoT Module

04/03/2022

The EM510 is an ultra-compact Tibbo BASIC/C-programmable IoT Module with a single UART, Ethernet, and optional Wi-Fi/BLE* (Bluetooth Low Energy) connectivity. The module offers substantial performance improvements over its predecessor — the original EM500 device.

The second member of our MiniMo® family, the EM510 is designed to be used in tandem with a standard RJ45/magnetics jack. The combined footprint of the EM510 and a typical jack is only 28.5 x 18.5mm (1.12 x 0.73").

Compact dimensions, space-saving "vertical slice" form factor, low power consumption, and economical pricing make the module an excellent fit for miniature, cost-sensitive IoT devices.

Main Features

  • Mid-range ARM CPU
  • 10/100 Base-T Ethernet port (no RJ45/magnetics)
  • Optional Wi-Fi connectivity (with the WA2000 add-on)
  • Optional BLE (Bluetooth Low-Energy) connectivity (with the WA2000 add-on)
  • 1 UART, supports serial, Wiegand, and clock/data streams
  • 10 general-purpose I/O lines
  • 4 synchronous serial ports with SPI and I2C modes
  • 512K flash for TiOS and application, support for external 1MB flash disk
  • 2048-byte EEPROM
  • Patented dual-function LED control (explained below)
  • Height and width of an RJ45 jack, thickness only 6.5mm
  • 3.3V power
  • Supports over-the-air (OTA) firmware updates (with WA2000 add-on)
  • Supported by Cody project generator
Documents Tech question

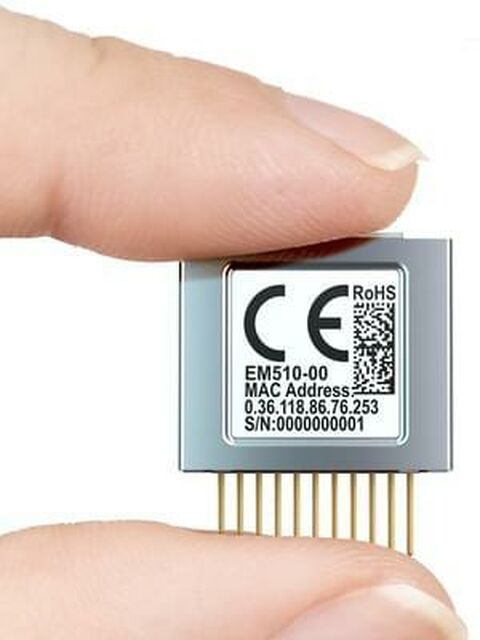

Tibbo em510 fingers

EM510 MiniMo® Programmable IoT Module

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 21 I Io T

    IoT

  • 7 Io T Industry 4 0

    IIoT & Industry 4.0

  • 6 Wireless Communication

    RF & Wireless communication

Technologies

  • Shutterstock 1047068560

    Wireless connectivity SoCs & modules

Tibbo Technology

Tibbo Technology focuses on designing, manufacturing, and marketing programmable IoT modules, boards, and controllers for the Internet of Things (IoT), Industrial Internet of Things (IIoT), and automation applications.

Read more
Tibbo logo main

Documents

  • Tibbo EM510 Datasheet
