EEE 802.3af PoE PD with Integrated DC-DC Controller and 13W Power FET

18/03/2024

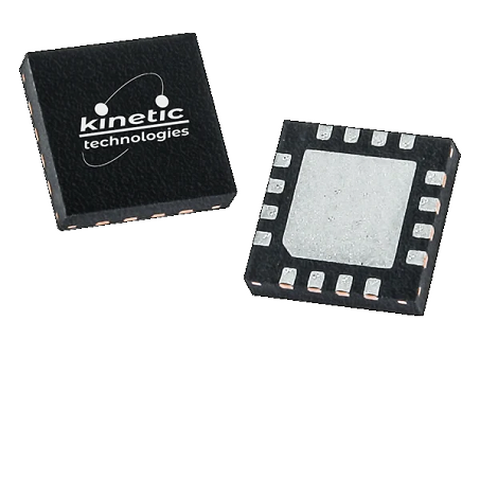

The KTA1136 is a single-chip, highly integrated CMOS solution for 13W Power over Ethernet (PoE) Powered Devices. Applications include Voice over IP (VoIP) Phones, Wireless LAN Access Point, Security Cameras, WiMAX Terminals, Point-of-Sales Terminals, RFID Readers, Thin Clients and Notebook computers. The KTA1136 integrates input surge protection, a PD controller with a 100V hot-swap FET, a DC-DC controller, and a robust 150V switching power MOSFET.

Main Features

  • Compliant to IEEE® Std. 802.3af-2003
  • Supports Type 1 operation for IEEE® 802.3at2009 and IEEE® 802.3bt-2018
  • Integrated DC-DC Controller with robust 150V, 0.7Ω typ. supporting both isolated and nonisolated applications
  • Low RDS_ON Hot-Swap FET, 0.49Ω typ.
  • Adjustable switching frequency from 100kHz to 800kHz
  • Programmable DC-DC Current Limit
  • Integrated Surge Protection for 15kV/8kV System level ESD Compliance
  • Exceptional EMI performance
  • Integrated Short-Circuit Protection
  • Over temperature protection
  • RoHS & Pb Free 4x4 mm, 16 lead TQFN Package
  • Industrial temperature range (-40°C to +85°C)
Documents Tech question
Kinetic KTA1136

EEE 802.3af PoE PD with Integrated DC-DC Controller and 13W Power FET
