Edge AI Computing System Powered by NVIDIA Jetson AGX Orin

21/10/2022

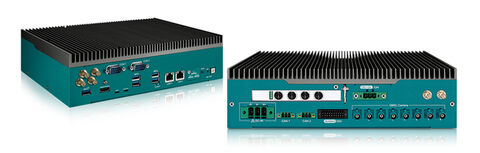

This edge AI computing system,the EAC-5000, is powered by the NVIDIA® Jetson AGX Orin™ platform. The compact EAC-5000 is rugged in design and supports high compute density with I/O flexibility for advanced edge AI applications in harsh environments. With support for 9V to 50V wide range DC power input, operating temperature range from -20°C to 70°C, as well as software ignition control

Main Features

  • Adavnced NVIDIA® Jetson AGX Orin™ platfrom delivers up to 275 TOPS AI performance
  • The latest NVIDIA Ampere™ architecture, featuring with 2048 NVIDIA® CUDA® cores and 64 Tensor cores
  • Supports 8 GMSL 1/2 automotive cameras with Fakra-Z connectors
  • 1 PCIe Gen4 x8 expansion slot supports optional multiple 10GigE/PoE LAN/USB connections
  • 2 Isolated CAN Bus support Flexible Data-rate,2 COM RS-232/422/485
  • 2 GigE LAN, 5 USB 3.1, 1 Digital Display supports 8K60
  • Supports device remote management by Allxon
  • DC 9V to 50V wide range power input, Ignition Power Control
Documents Tech question
Vecow EAC 5000 series Vecow EAC 5000 series nvidia jetson agx
