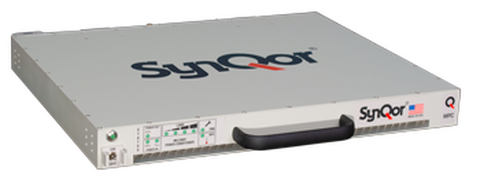

DC output Shallow Rack Military Field-Grade Power Conditioner with a battery charger

08/04/2022

SynQor’s Military Field-Grade Power Conditioner units are designed for the extreme environmental and demanding electrical conditions of Military/Aerospace applications. SynQor’s MPC incorporates field proven high efficiency designs and rugged packaging technologies. This MPC will accept a wide range of input voltage and frequency values while delivering a well- conditioned DC output to the load. It is designed to comply with a wide range of military standards.

Main Features

  • 1250 W isolated full power DC output (28 Vdc)
  • Universal AC input: 80-265 VAC; 47-65 Hz or 47-800 Hz
  • Output Voltage range 22-33 Vdc
  • Current Limit 0-45 A
  • Wide temperature range -40 °C to +70 °C
  • Built-in Load Sharing and Redundant (N+M) capabilities
  • 1U High Rack-Mount unit (17.00" W x 14.80" D x 1.73” H)
  • Real time monitoring via SNMP or Web Interface
  • Low Weight 22 lbs.
Documents Tech question
MPC 1250 with battery charging feature

DC output Shallow Rack Military Field-Grade Power Conditioner with a battery charger

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 15 Avionics Satellite

    Avionics & Satellite

  • 14 Aerospace Mil

    Aerospace & Mil

Technologies

  • Shutterstock 162948803

    Power solutions >1000 W

Synqor

SynQor is a leading supplier of power conversion solutions to the military, industrial, transportation, telecom/datacom and medical markets. SynQor's innovative products are designed to exceed the demanding performance, quality, and reliability requirements of today's power electronic engineers and system integrators who develop leading-edge infrastructure hardware.

Read more
Synqor Logo

Documents

  • MPC 1250 DC Datasheet
