Crisp IPS Displays in all sizes

13/05/2022

The small, coloured displays from DISPLAY VISIONS are the perfect replacement for monochrome displays. They impress thanks to their rich colours and strong contrasts, and have amazing angle stability.

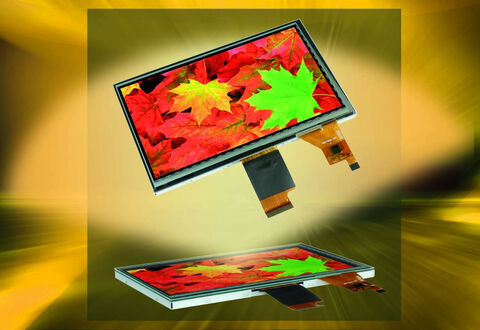

With the EA TFT series, DISPLAY VISIONS has a series of small IPS colour displays to offer which are also excellently suited if you wish to replace monochrome graphics displays. In terms of the IPS technology, the light-conducting liquid crystals are aligned parallel to the image plane. This special arrangement means that colours and contrasts remain brilliant and stable, even if the viewing angle changes. The graphics displays can therefore be installed in a portrait format as well as landscape without any loss of readability. With maximum brightness levels of up to 1,000 cd/m², the displays are still clear to read even in direct sunlight.

The displays are currently offered in sizes from 0.96 inches (EA TFT009-81AINN) to 10.1 inches (EA W1280X-101ALW).

Main Features

EA TFT009-81AINN

0.96” low-power tft
Wide viewing angle all around (ips)
500cd/m² / 400 cd/m² with pcap
3.3 v
Single supply
-20..+70°c (top.)
160x80 dots
Incl. controller st7735s
Pcap with i²c bus controller ft3267
4-wire and 3-wire spi
27.95x13.5 mm outline dimensions (w. touch 18.7x31.9 mm)

EA W1280X-101ALW

1280x800 dots full color tft (24 bit) 16:9
IPS technology for wide viewing angle of 85° in all directions
LVDS interface
High brightness 1100cd/m² makes it sunlight readable
Operating temperature range (top 0°c - +50°c)
Incl. mounting bezel for pcb mount
