Control/Gateway/Display All-in-One Industrial Panel PC equipped full-featured HMI software

12/01/2024

The PanKonix® series HMI is an Intel® Core™ i3/i5 and Intel Atom® x5/x7-based panel PC equipped with user-friendly, full-featured HMI software. It ensures seamless PLC connectivity through Modbus protocol support and incorporates trend charts, data logging, alarms, and cloud connectivity functions with RESTful API, MQTT, and OPCUA support for efficient data visualization and machine monitoring. The vector graphics-based HMI software, featuring a built-in library of 100+ graphics, enables easy editing to meet diverse field applications. The device boasts a glove-compatible high-resolution touchscreen up to 21 inches, ensuring an optimized operational experience. Positioned as a cost-effective, ready-to-use, and highly reliable solution, the PanKonix series HMI is an ideal choice for Industry 4.0 implementation

Main Features

  • Supports various mainstream PLC devices for easy data visualization
  • Supports RESTful API, MQTT, OPCUA, Modbus, BACnet
  • Built-in library with 100+ images and supports importing external graphics
  • Features trend chart, logging, alarms and recipe management
  • Glove-usable 10-point PCAP touchscreen
  • Up to 21.5“, 1920 x 1080 Full HD 16:9 LED-backlit LCD
  • AUO® Display Plus powered 7H hardness with IP65 rating
  • Compatible with SuperCAT for up to 8-axis EtherCAT motion control and APS function library capability
Documents Tech question

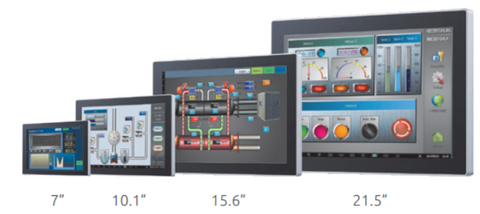

Schermafbeelding 2024 01 12 102706

Control/Gateway/Display All-in-One Industrial Panel PC equipped full-featured HMI software

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 22 Agriculture

    Agriculture

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • Shutterstock 613309214

    Life sciences, Lab, Bio & Pharma

  • 8 Instrumentation

    T&M and instrumentation

Technologies

  • Shutterstock 1901551972

    Panel PCs & HMI

Adlink

Adlink's mission is to affect positive change in society and industry by connecting people, places and assets with artificial intelligence; we do this through the delivery of leading edge, robust and reliable hardware and software solutions that directly address mission-critical business and technology challenges.

Read more
Adlink Logo

Documents

  • Pan Konix Series HMI Panel PC
