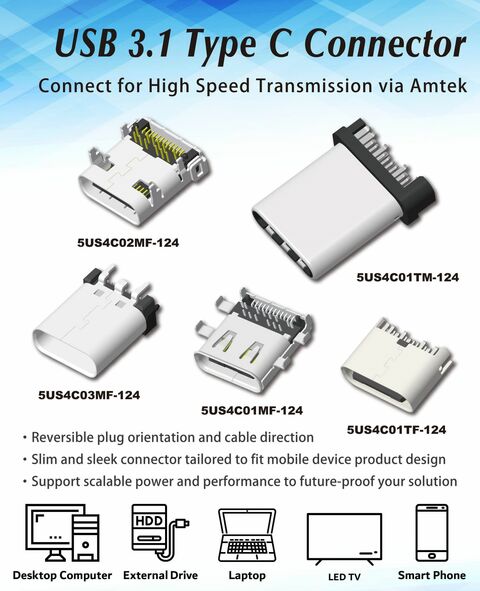

Connectors for High Speed Transmission

10/12/2021

AMTEK’s USB connector system accommodates the two deferentially driven data wires that provide bi-directional, simultaneous signals for full speed (12Mbps) or low speed (1.5Mbps) used in universal series bus (USB) systems.

  • Reversible plug orientation and cable direction
  • Slim and sleek connector tailored to fit mobile device product design
  • Support scalable power and performance to future-proof your solution

Main Features

5US4C01MF-124S0BUHQ1:
USB 3.1 Type C Female SMT R/A 24P 01 Series

  • Rated Voltage and Current: 1A Max.
  • Dielectic withstanding voltage: 30V(AC) for 1 minute
  • Contact Resistance:
  • Before life test 30mΩ Max.
  • After life test 50mΩ Max.
  • Operating Temperature Range: -25°C to +85°C
  • Insertion Force: 5N~20N.
  • Withdrawal Force: 8N~20N After 10,000 Cycles Mating: 6N~20N


5US4C01TM-124XXBUHCX:
USB 3.1 Type C Female Dip 180°

  • Current Rating: 5 AMP for VBUS Pin, 1.25 AMP for VCONN Pin
  • Insulation Resistance: 100MΩ Min.
  • Contact Resistance: 40mΩ Max.
  • Dielectric Voltage: 100V AC/Minute
  • Insertion Force: 5N to 20N
  • Withdrawal Force: 8N to 20N
  • Operating Temperature: -25°C to +85°C
Documents Tech question
Amtek USB 3 1 type c connector
