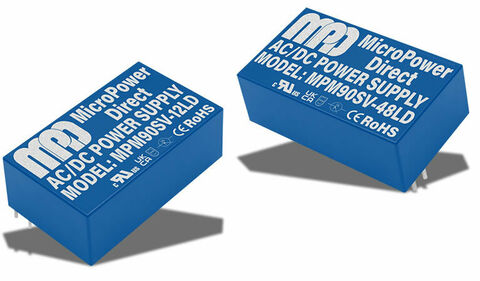

The MPM-90SVLD is a family of very compact 90W switching power supplies.
The MPM-90SVLD features ultra-wide 80 to 305VAC (110 to 430 VDC) inputs, 4,200 VAC I/O isolation, reinforced insulation and 90W of output power. All models meet the requirements of EN60335 and EN 61558 and are fully approved to UL 62368.
Sstandard models are available with regulated outputs of 12, 15, 24 or 48 VDC. Features include efficiency to 93%, tight line/load regulation, and over voltage protection. The PIN-out is industry standard. Adapters are available for mounting the MPM-90SVLD modules to a DIN Rail or onto a chassis.
The MPM-90SVLD’S combination of compact size, excellent thermal performance, robust features and low cost make it an ideal choice for a wide variety of board level power applications.
MicroPower Direct ( MPD ) growth is driven by a commitment to delivering innovative, high quality power conversion products at the lowest possible prices.
