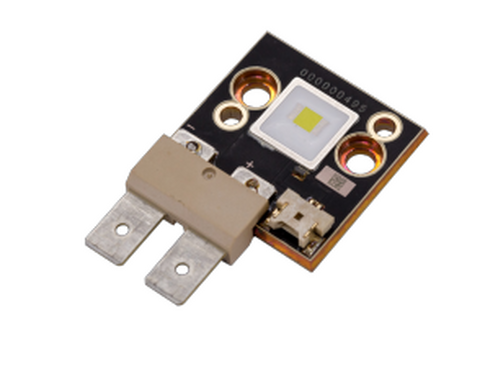

Compact monolithic cool white LED source for Life Science and Industrial Applications

18/11/2022

The CFT-90- WDH, a compact monolithic cool white LED source centered around the 6000K color temperature with a high CRI (color rendering index) of 93. These LEDs are capable of being driven at very high currents (up to 27A) under both CW and PWM conditions and delivering 3200 lumens typical at 22.5A. In addition, these LEDs provide an extremely low thermal resistance chip-on-board package coupled with a robust design and median lifetime well in excess of 50,000 hours (L70/B50). Finally, the window-less package is designed for optimal coupling efficiency into either large diameter fiber bundles or light engines. The CFT-90-WDH LEDs are ideal light sources for applications that include any fiber illumination that requires high color rendering index such as medical endoscopy and other life science applications. They are also widely used in industrial applications including machine vision and instrumentation, and stage lighting applications, and are an ideal replacement to legacy lamp solutions such as Xenon or Halogen lamps.

Main Features

  • CRI of 93 typical
  • Centered around a 6000K color temperature
  • High current operation of up to 27A DC
  • Window-less package design
  • Low thermal resistance
  • RoHs and REACH compliant
Documents Tech question
Schermafbeelding 2022 11 17 162459

Compact monolithic cool white LED source for Life Science and Industrial Applications

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • Shutterstock 613309214

    Life sciences, Lab, Bio & Pharma

  • 4 Medical Healthcare Fitness

    Medical, Healthcare & Fitness

Technologies

  • Shutterstock 570647902

    Machine vision

  • Shutterstock 767486674

    LED light sources

Luminus

Luminus Devices develops and manufactures solid-state lighting solutions to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination.

Read more
Luminus Logo

Documents

  • Luminus CFT 90 W Datasheet
