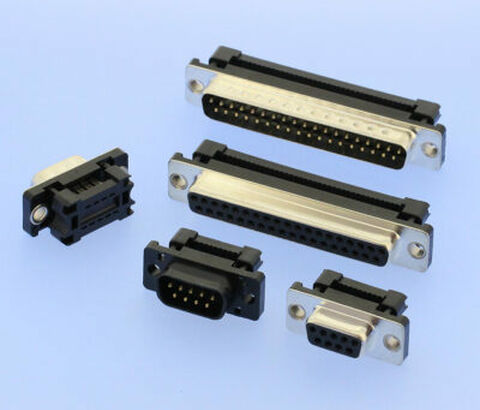

The D-Sub Connectors series 114-6 completes W+P`s product range with a connector pair especially for the IDC flat cable sector. Due to pressed dimensions of about 14.20mm without strain relief, or approx. 18.80mm with relief, these attractive dimensions meet the needs of ever decreasing sizes of devices. Suitable ribbon cables in the AWG range 28, round off the complete package with the 3560 series.
The housings are classically offered in steel (nickel-plated) or optionally in full plastic. Insulators are provided in black as standard, grey and blue are also available.
| Shell | Nickel plated steel (full plastic with option 30) |
|---|---|
| Insulator | Thermoplastic, rated UL94 V-0 |
| Colour | Black (grey or blue on request) |
| Contact Material | Copper alloy |
| Contact Surface | Sel. Au/Sn over Nickel |
| Contact Resistance | < 20 mΩ |
| Insulation Resistance | > 3000 MΩ |
| Test Voltage | 1000 V AC |
| Operating Voltage | 250 V AC max. |
| Current Rating | 1 A (current carrying capacity 3 A max.) |
| Temperature Range | -55 °C … +105 °C |
| Quality Class | Quality class 3, min. 50 cycles, more quality options on request |
