Circuit Protection in High Speed Interfaces

19/08/2022

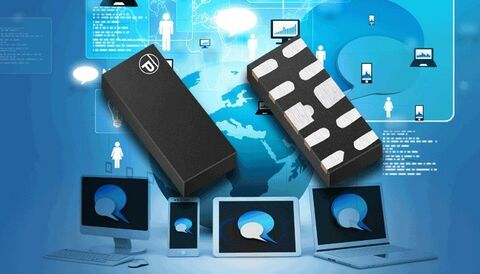

The PLRT0504LC is an ultra-low capacitance steering diode / thyristor designed to protect computing applications such as HDMI 1.4 – 2.0, USB 1.0-3.0, DVI interfaces, and other similar inputs as well as telecommunications equipment/systems. The PLRT504LC is available in a space saving DFN-10 package configuration with an approximate weight of just seven milligrams. It meets IEC standards 61000-4-2, IEC 61000-4-4 and IEC61000-4-5. At higher operating frequenciesor faster edge rates, insertion loss and signal integrity are a major concern, the PLRT0504LC, in conjunction with passive components integrated into a TVS/filter network can be used for EMI/RFI protection.

Main Features

  • Compatible with IEC 61000-4-2 (ESD): Air ±15kV, Contact ±8kV
  • Compatible with IEC 61000-4-4 (EFT): 40A, 5/50ns
  • Compatible with IEC 61000-4-5 (Surge): 3A - 8/20µs
  • ESD Protection > 25 kilovolts
  • Protects 4 Data Lines
  • Low Leakage Current < 0.1µA
  • Ultra Low Capacitance: 0.3pF Typical (I/O to GND)
  • RoHS Compliant
  • REACH Compliant
Documents Tech question
Protek PLRT0504 LC

Circuit Protection in High Speed Interfaces

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 24 Telecom

    Wired data & telecom

Technologies

  • Shutterstock 1831382515

    Circuit protection & discrete semiconductors

Protek

ProTek Devices™ offers a full range of overvoltage protection and overcurrent protection components including transient voltage suppressor arrays (TVS arrays), avalanche breakdown diodes, steering diode TVS arrays, PPTC devices, and electronics SMD chip fuses.

Read more
Protek Logo

Documents

  • Protek plrt0504lc Datasheet
