Bluetooth® Low Energy Wireless MCU Module

05/02/2021

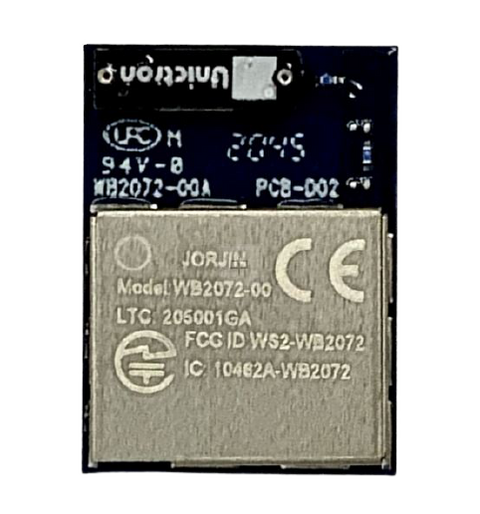

The certified WB2072-00 module from JORJIN is a wireless MCU module targeting Bluetooth 5.2 low energy applications. This module is based on ST BlueNRG-355AC wireless MCU QFN-32 package chip. The module is a cost-effective, ultralow power, 2.4-GHz RF devices. Very low active RF and MCU current and low power mode current consumption provide excellent battery lifetime and allow for operation on small coin cell batteries and in energy harvesting applications.

Documents Tech question
Jorjin

Bluetooth® Low Energy Wireless MCU Module

  • Features
  • Applications
  • Technologies
  • Documents
  • High performance and ultra low power Cortex M0+ 32 bit , 64 MHz
    256 KB Flash, 64 KB SRAM, 1 KB OTP, 7KB MPU
    Operating supply voltage: from 1.7 to 3.6 V
    Dynamic current consumption: 18 μA/MHz
  • Extensive peripheral set: 2 x SPI / I2S, 1x SPI, 2 x I²C, 1 x USART, 1 x UART, 6 x PWM, 1 x PDM, 1 x 12 bit ADC
  • Embedded UART bootloader
  • Enhanced security mechanisms such as:
    – Flash read/write protection
    – SWD access can be disabled
    – Secure bootloader
  • LGA 42pins package
  • Dimension 15 mm(L) x 11 mm(W) x 2.6 mm(H)
  • Temperature range: -40° to +85°C

Applications & Markets

  • 7 Io T Industry 4 0

    IIoT & Industry 4.0

  • 17 Home Building Automation

    Home & Building Automation

  • 4 Medical Healthcare Fitness

    Medical, Healthcare & Fitness

Technologies

  • Shutterstock 1047068560

    Wireless connectivity SoCs & modules

Documents

  • Jor Jin WB2072 00 Datasheet
