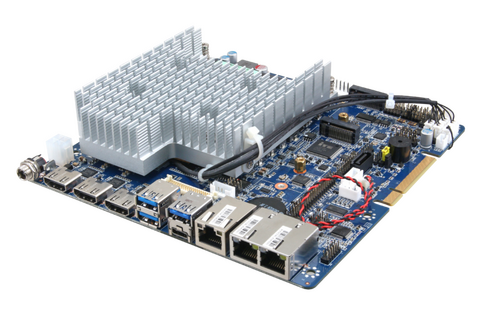

Based on Whiskey Lake U Intel® Core™ and Celeron® Processors Thin MINI ITX Motherboard

Features:

• Onboard 8th Gen Intel® Whiskey Lake U Core™ SoC i7/i5/i3 & Celeron®BGA Processor
• Two 260-pin DDR4 2400 MHz SO-DIMM socket, supports up to 32GB Max (non ECC only)
• 2 x HDMI + 1 x HDMI/Dual-channel LVDS (default LVDS); Triple display (HDMI+HDMI+LVDS)
• 1 x Intel® I219LM Gigabit Ethernet PHY, 2 x Intel® I210IT PCI-e Gigabit Ethernet (Co-lay Intel® I211AT/I210AT)
• Realtek ALC892 Audio Codec & TI TPA3113D2PWP Stereo Class-D 6W x 2 Audio Amplifier
• 1 x SATA III, 1 x SATA Power, 4 x USB 2.0, 3 x USB 3.1 Gen1, 1 x USB Type C without DP Signal
• 4 x RS232, 2 x RS232/422/485, 16-bit GPIO
• 1 x M.2 Key A 2230 support WiFi module ( 1 x PCI-e x 1 & USB 2.0 Signal), 1 x M.2 Type B 3042/2242/2260/2280 support
• WWAN+GNSS or SSD with 1 x SIM card slot
• Support Line-out & Mic-in & Front audio pin-header, Onboard TPM 2.0
• DC in +12~24V
• Operating Temp -20°C~+60°C (with heatsink and heater attached, 0.5 m/s air flow speed testing)
