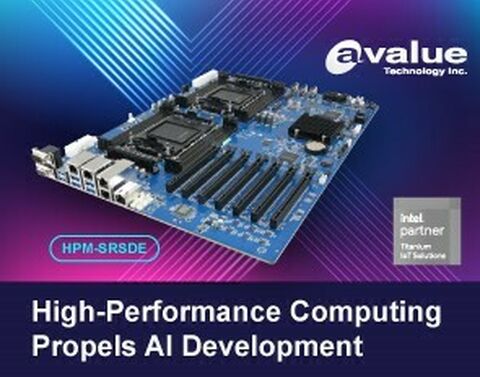

Avalue HPM-SRSDE High-Performance Computing Propels AI Development

19/10/2023

HPM-SRSDE High-Performance Computing Propels AI Development

Built-in 4th Gen Intel® Xeon® Scalable Processors Empower Sustainable Computing

Avalue HPM-SRSDE solution is specifically designed for high-performance computing applications. With two built-in 4th Gen Intel® Xeon® scalable processors, HPM-SRSD server motherboard is not only capable of high-speed data processing and complex computing, the utilization of digital technology itself realizes Avalue’s objective of sustainable business development.

Supporting two 4th Gen Intel® Xeon® scalable processors (codenamed Sapphire Rapids), Avalue HPM-SRSDE server motherboard has the most built-in accelerators in the world, providing exceptional data throughput. Its outstanding power supply and power consumption management also help customers lay the groundwork for sustainable computing. Twice as fast as the previous specifications, PCIe 5.0 delivers high-performance data transfer rate. HPM-SRSDE server motherboard is equipped with up to seven sets of PCIe 5.0 x 16 slots, supports dual-channel GPU card, supports up to 12 sets of DDR5 4800/4400 RDIMM memory, and up to 3TB capacity, doubling DDR4 bandwidth. With three sets of SlimSAS 8i (SFF-8654) connectors supporting U.2, and one set of Mini-SAS HD 4i connectors which can be converted to four SATA or one set of x4 NVME interface, transmission density is increased while providing greater design flexibility with multifunctional connectors. Dual 10-GbE, one 2.5GbE and 1 GbE Ethernet ports increase transmission speed between compute nodes, reducing latency and optimizing connectivity. Furthermore, IPMI (Intelligent Platform Management Interface) 2.0 enables remote system management/ upgrading, real-time system diagnostics and maintenance scheduling.

Main Features

  • Dual Intel LGA4677 Sockets support 4th Gen. Intel Xeon Scalable Processor (Max. TDP at 270W)
  • Intel C741 Chipset
  • 12 x DDR5 4800/ 4400 MHz RDIMM up to 3TB
  • TPM 2.0 onboard
  • IPMI 2.0 with AST 2600 BMC controller onboard
  • 1 x Intel I210AT Giga-bit Ethernet
  • 1 x Intel I226LM 2.5Giga-bit Ethernet
  • 1 x Intel X550-AT2 10Giga-bit Ethernet (Optional)
  • 5 x SATA III Support RAID 0,1,5,10
  • 1 x internal RS232 port
  • 6 x USB 3.2 Gen1 port at Edge I/O
  • 2 x internal USB 3.2 Gen1 Port & 2x USB 2.0 type A receptacle
  • 1 x M.2 M-Key PCIe 5.0 x4 NVMe SSD,2242/2260/2280/22110 form factor
  • 12” x 16.452” (304.8mm x 417.88mm), PCB thickness is 2.86mm
