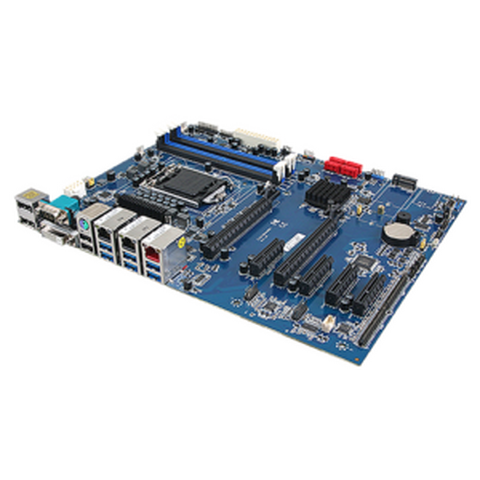

ATX motherboard with 10th Gen Intel® Xeon® W-1200 Series

EAX-W480P main features:

• Intel® LGA1151 Socket Supports 10th Gen. Core™ i7/ i5/ i3, Pentium® and Celeron® Processors (Max. TDP at 125W)
• Four 288-pin DDR4 U-DIMM Socket, Supports Up to 128GB Max (ECC memory supported by CPU)
  - DDR4 2933MHz (W1290E /W1290TE /W1270E /W1290TE /i9 /i7 CPU) /
  - DDR4 2666MHz (W1250E /W1250TE /i5 /i3 CPU) /
  - DDR4 2400MHz (Pentium / Celeron CPU)
• 1 x DVI-D, 1 x DP++, 1 x DP++
• 1 x Intel® i210AT, 1 x Intel® i219LM Gigabit Ethernet, 1 x Intel® I225V 2.5 Gigabit Ethernet Controller
• PS/2 KB/MS + 2 x USB 2.0 at I/O
• 3 x RJ-45 with Dual deck for 6 x USB 3.1 Gen2 at I/O
• 5 x USB 2.0 by pin header, 1 USB 2.0 Vertical type A
• 8 x RS-232, 2 x RS-232/422/485, 16-bit GPIO
• Onboard Infineon SLB9665 TPM 2.0
• 2 x PCI-e x16 slot for 1 x PCI-e x16 or 2 x PCI-e x8 (By Auto switch IC), 3 x PCI-e x4
