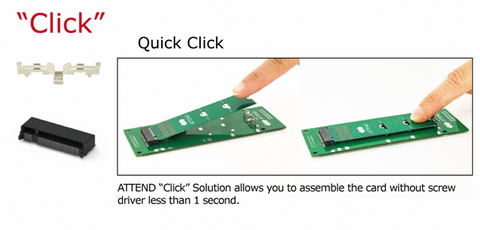

Attend's “Click” Solution allows you to assemble the PCB module without screw driver less than 1 second.

01/10/2021

M.2 connector, also known as the Next Generation Form Factor (NGFF) is originally designed for the ultra-thin products. Its compact size could save over 20% of PCB design space compare with mini PCIe connector. M.2 connector applies to high-speed data transmission that supports PCI Express 3.0, SATA 3.0 and USB 3.0.

Main Features

  • Current Rating: 0.5A per pin
  • Voltage Rating: 50VAC
  • Contact Resistance: 55mΩ, Δ20Ω Max.
  • Insulation Resistance: 500MΩ
  • Dielectric Withstanding Voltage: 300VAC
  • Durability: 60 Cycle
  • Mating Force: 20N max.
  • Un-mating Force: 20N max.
  • Operating temperature range: -40℃~+85℃
  • Storage temperature range: -40℃~+85℃
  • Recommended IR Reflow(Wave Soldering) Temperature: 260℃
Documents Tech question
Attend m2 connector click

Attend's “Click” Solution allows you to assemble the PCB module without screw driver less than 1 second.
