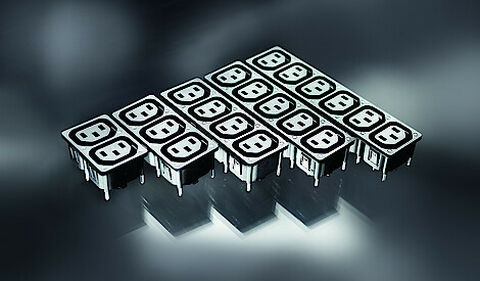

Appliance socket strip with maximum flexibility and an unprecedented range of variants

13/05/2022

The demands on power distribution units are very individual. For this reason, SCHURTER is launching the 4750 series. The number of outlets can be freely configured from 2 to a maximum of 7, whereby each outlet already has a cord retention system (horizontal or vertical). This is an indispensable requirement for power distribution units in data center applications or in medical technology.

Furthermore, the 4750 appliance strip-block is available in a wide range of Terminal variants (PCB, solder or Quick Connect versions) as well as with freely configurable light pipes to indicate an individual status.

To keep track in 3-phase systems, the 4750 series is available in three different colors white, grey or black

Main Features

  • Panel mount
  • Snap-in version front side (1.2 / 1.5 / 1.7 mm)
  • Configurable Strip block from 2 up to 7 outlets type F
  • Cord retention for cordsets with V-Lock, Twylock or P-Lock
  • Pre-assembled Light Pipe for status indication
  • Solder / PCB / QC (4.8 / 6.3 x 0.8) mm
  • Choice from 2 up to 7 outlets
  • Cord retention and optional light pipes
  • Hard-wired bus variants configurable
  • Available in black, grey or white
Documents Tech question
Schurter 4750 series

Appliance socket strip with maximum flexibility and an unprecedented range of variants

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • 4 Medical Healthcare Fitness

    Medical, Healthcare & Fitness

  • 24 Telecom

    Wired data & telecom

Technologies

  • Shutterstock 1822775435

    Connectors

Schurter

The SCHURTER Group is a global manufacturer of components for circuit protection ,connectors, switches and EMC products, as well as systems for HMI applications and input systems.

Read more
Schurter Logo

Documents

  • Schurter 4750 Datasheet
