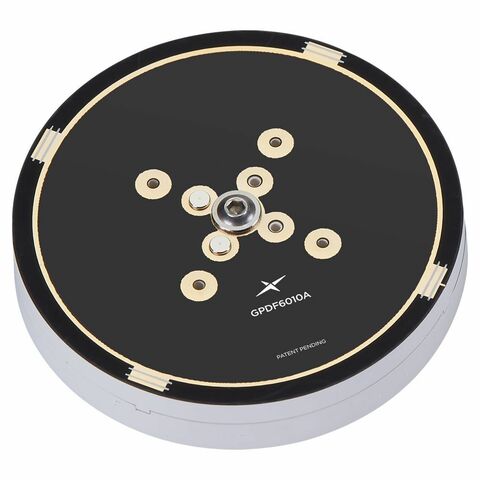

All-band High Precision GNSS Stacked Patch Antenna

10/12/2021

The GPDF6010.A is an innovative high performance, multi-band passive high precision GNSS antenna that has been carefully designed to provide fantastic positional accuracy on the full GNSS spectrum. Correct implementation of the GPDF6010.A allows the user to achieve higher location accuracy, as well as stability of position tracking in urban environments. The novel Terrablast circular stacked patch construction has excellent performance across the full bandwidth of the antenna while reducing weight by nearly 40% compared to other antenna options. Its unique design provides excellent polarization and phase performance, providing exceptional positional and timing accuracy.

Main Features

Bands Covered:

  • GPS (L1/L2/L5)
  • IRNSS (L5)
  • QZSS (L1/L2C/L5/L6)
  • Galileo (E1/E5a/E5b/E6)
  • GLONASS (G1/G2/G3)
  • BeiDou (B1/B2a/B2b/B3)


  • Dual pin, dual feed, 4-pin configuration
  • Dimensions: Ø60 x 10mm
  • RoHS & Reach Compliant
Documents Tech question
Taoglas GDPF6010 A

All-band High Precision GNSS Stacked Patch Antenna

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 22 Agriculture

    Agriculture

  • 3 Automotive

    Automotive

  • 7 Io T Industry 4 0

    IIoT & Industry 4.0

  • 18 Traffic Transportation

    Traffic & Transportation

Technologies

  • Shutterstock 1226404321

    Antennas

Taoglas

Taoglas is the world’s leading provider of next-generation IoT solutions, combining the latest in high-performance RF antenna with advanced positioning, imaging, audio and artificial intelligence technologies for companies with unique IoT challenges.

Read more
Taoglas Logo

Documents

  • Taoglas GPDF6010 A Datasheet
