Three versions offered:-
M – standard IEEE802.3af compliant surface mount module;
MT – standard + Industrial temperature surface mount module;
LP – same PoE standard with Low profile (less than 8mm high).
MTB/LPB -now available with block terminals instead of traditional pin headers

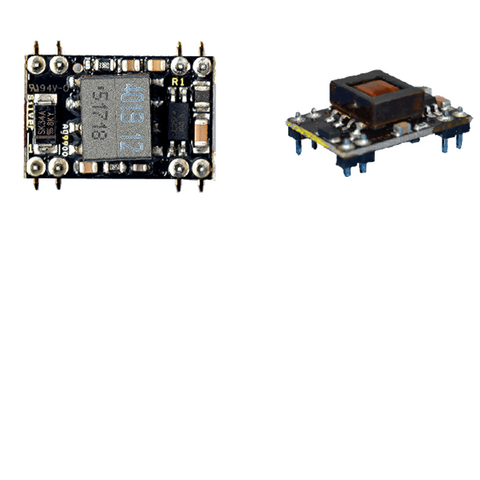

It is designed such that adding just two diode bridges and an electrolytic capacitor to this truly tiny module is enough to enable PoE functionality in a product. Ag9900 is fully compliant to the IEEE 802.3af PoE standard. It provides a PoE signature, classification, isolation and DC to DC conversion options for 12V, 5V, 24V or 3.3V, while taking up minimal PCB space.
