AC/DC Power distribution units & control systems

18/01/2024

Power distribution is the fundamental functionality of a PDU. Astrodyne TDI will work closely with the end- user to set requirements, stipulating the number of connections, along with their power rating. Current capabilities range from small PDUs delivering 100's of watts to large scale Power Systems delivering 100's of kilowatts. Supported power input sources include: uninterruptible power supplies (UPS), power supplies (PSU), and utility power sources (AC Main), orbattery power (DC); with ability to support additional power sources available upon request.

Main Features

Input Options:

  • Up to 5 Inputs per single PDU (Parallel options available upon request)
  • DC options from 0 to 2kV
  • AC options from 90-120VAC 1PH (low line), 176-264VAC 1PH (high line), 208VAC 3PH, 380- 480VAC 3PH (50/60Hz, 400 Hz)

Output Options:

  • Up to 30 Outputs per PDU/Rack
  • DC options from 0 to 2kVDC and 0 to 500kW
  • AC options from 90-120VAC 1PH (low line), 176-264VAC 1PH (high line), 208VAC 3PH, 380- 480VAC 3PH and 200kW (50/60Hz, 400 Hz)


Additional options available upon request

Documents Tech question

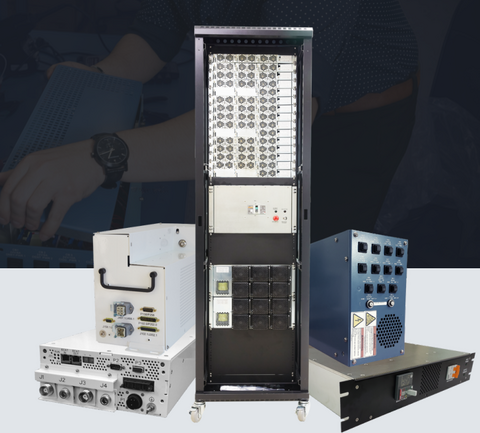

Schermafbeelding 2024 01 18 150225

AC/DC Power distribution units & control systems

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • Shutterstock 613309214

    Life sciences, Lab, Bio & Pharma

  • 4 Medical Healthcare Fitness

    Medical, Healthcare & Fitness

  • 8 Instrumentation

    T&M and instrumentation

Technologies

  • Shutterstock 162948803

    Power solutions >1000 W

Astrodyne TDI

Astrodyne TDI designs and manufactures Power Supplies and EMI Filters for a variety of markets, including Aerospace, Industrial, Medical, Military and Semiconductor Manufacturing.

Read more
Astrodyne Logo

Documents

  • PDU Product Sheet
