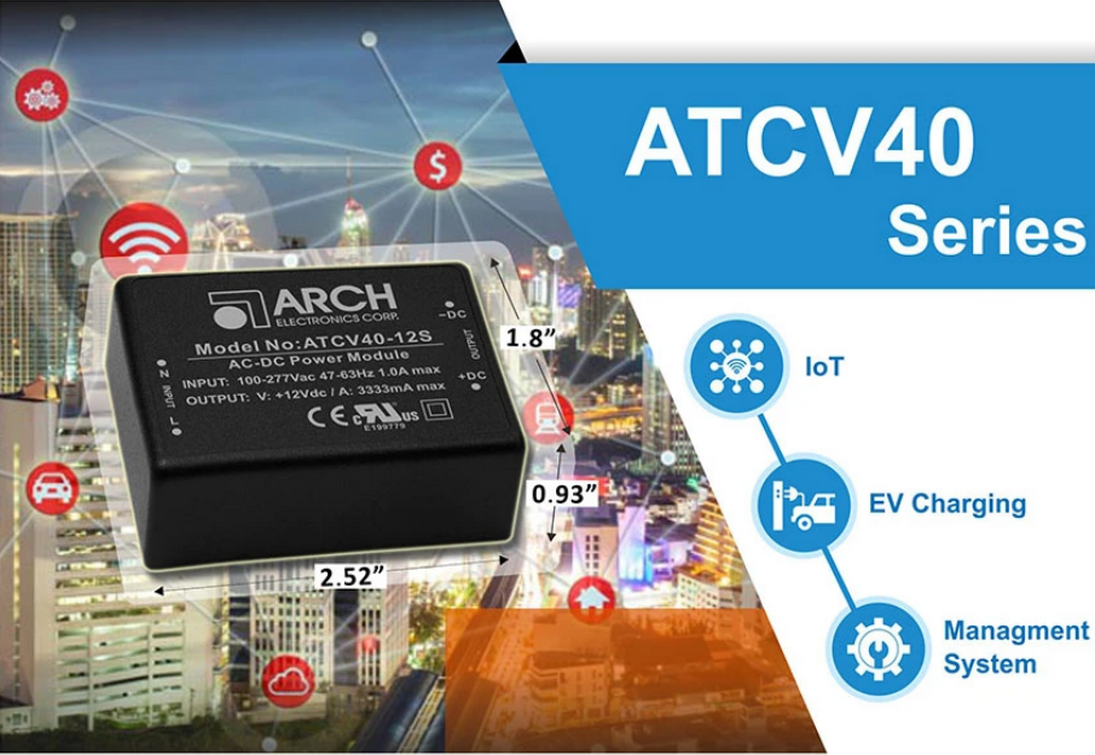

AC-DC ITE Power Module

21/10/2022
  • 40W OVC III encapsulated power module
  • Regulated single and dual output
  • Isolation 4300VAC
  • 5000M Altitude application
  • Over-voltage category OVC III EN 61558 (New edition)
  • Class II (Double Isolation) configuration with universal AC input voltage range
  • High efficiency up to 90%
  • No load power consumption <0.1W
  • Extreme low temperature cold start at -40°C, Highest up to +85°C
  • Safety approval to UL/IEC/EN62368-1, EN60335-1, EN61558-2-16

Main Features

  • Universal Input Range 90-305VAC, 47-440 Hz
  • I/O Isolation 4300VAC
  • Operating Ambient Temperature Range -40°C to +85°C
  • No Load Power Consumption < 0.1W
  • 5000m Altitude Application
  • Over-Voltage Category OVC III (New Edition)
  • High Efficiency up to 90%
  • Isolation Class II
  • EMC Compliant without External Components
  • Safety Approval to UL / IEC / EN 62368-1
  • Design meet .IEC / EN 61558-1, IEC / EN 61558-2-16, IEC / EN 60335-1
  • 3-Year Product Warranty
