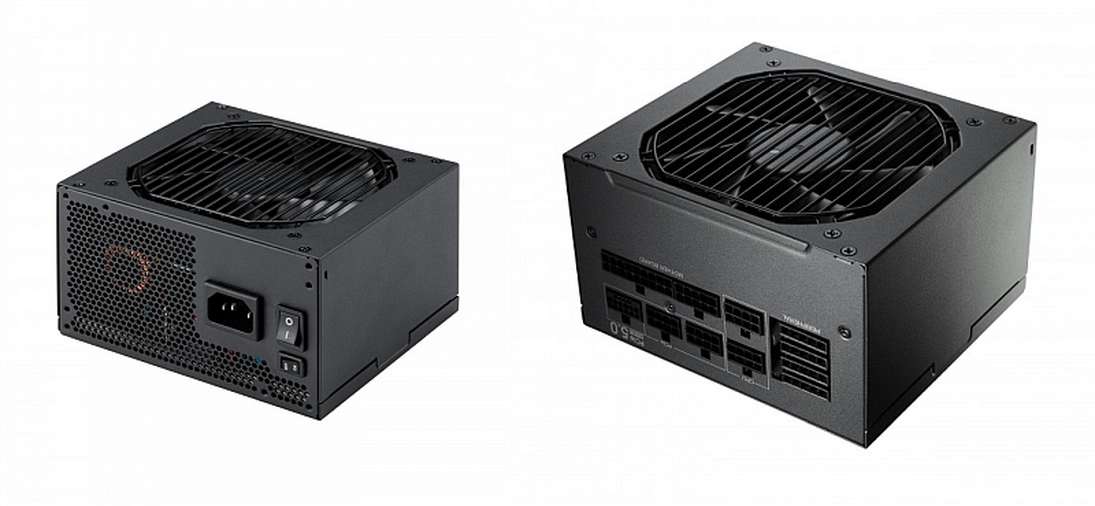

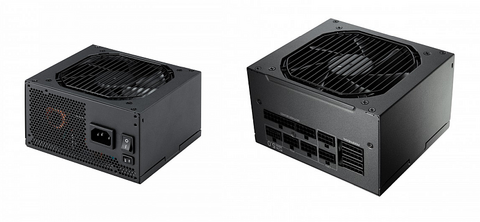

A New Line of Platinum-Class ATX 3.0 Power Supplies from FSP

27/01/2023

In 1996, FSP and Intel collaborated to create the first power supply that complied with the ATX specification. FSP850-57ASB, FSP1000-57ASB, and FSP1200-57ASB power supplies for Intel ATX12V V3.0 have recently made their debut! 12VHPWR, the newest PCle Gen5 connector, is included across the whole series. The products are compatible with AMD RX 7000 series and NVIDIA RTX4000 series graphics cards, thereby satisfying market need for high-power consumption GPU and CPU.


Power conversion efficiency has become a requirement for buying a power supply due to the ongoing release of high-power consumption components. All three power outputs of the 57ASB complete series, 850W, 1000W, and 1200W, provide platinum-grade conversion efficiency and exceptional power conversion performance. This series complies with the stringent specifications of ATX12V V3.0. When fully loaded, it can provide high-end graphics cards with a maximum power consumption of 200% of their rated power for 100μs. Even 600W of power can be delivered to graphic cards via the 12VHPWR connector on PCIe Gen5. The body is 10mm shorter than standard ATX power supplies and 60mm shorter than previous large-size ATX platinum power supplies. It can be mounted in either a small or a medium-sized desktop chassis. The short body has advantages such as convenient cable management, excellent heat dissipation, easy installation of other components, etc. Users who have strict requirements for chassis space planning can use it.

Main Features

FSP850/1000/1200-57ASB Product Features:

  • Intel PSDG ATX 12V V3.0 Version
  • Supports PCIe Gen5 specifications
  • 80 PLUS Platinum efficiency level
  • Supports international voltage 100Vac-240Vac
  • Single+12V power output to meet various system requirements.
  • Active PFC provides power factor correction of up to 0.99.
  • LLC + D2D architecture to provide high-performance efficiency conversion through
  • A 12-cm fan that provides an ultra-quiet environment for use
  • ECO fan temperature control switch design
  • Multinational safety certificates: CB 62368, CB 60950, CE, EMC, FCC TUV, CUL, BSMI, CCC, KC
