40W Programmable IP66/IP67 Driver

20/12/2024

The EUC-040SxxxHx series is a 40W, constant-current IP66/IP67 LED driver that operates from 90-305Vac input with excellent power factor. It is created for many lighting applications including tunnel and street, etc. The high efficiency of these drivers and compact metal case enable them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.

Main Features

Full Power at Wide Output Current Range (Constant Power)

Adjustable Output Current (AOC) with Programmability

Isolated 1(0)-5V/1(0)-10V/10V PWM/3-Timer-Modes

Adjustable Dimming Curve

High Reliability & Long Lifetime: 119,000 hrs. at 70°C Case Temperature

Dim-to-Low-Voltage with Standby Power ≤ 0.5W

Output Lumen Compensation

End-of-Life Indicator

Input Surge Protection: DM 4kV, CM 6kV

All-Around Protection: OVP, SCP, OTP

IP66/IP67

SELV Output

TYPE HL, for use in a Class I, Division 2 Hazardous (Classified) Location

Suitable for Class I Luminaires

5 Year Warranty

Tech question

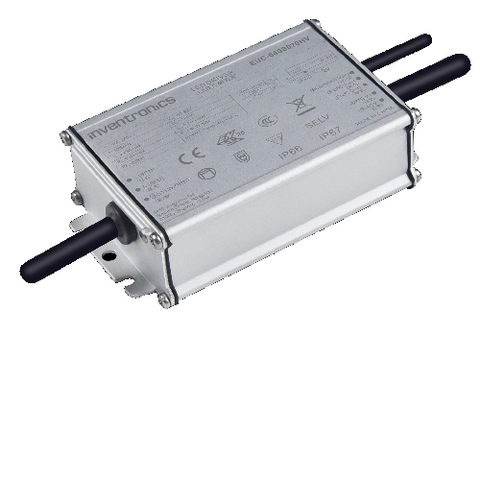

Inventronics EUC 040 Sxxx Hx

40W Programmable IP66/IP67 Driver
