7 kV Isolators

22/12/2023

IL700V-Series isolators already have the highest isolation voltage in the industry, and now it’s even higher. The parts have been upgraded from 6 kV to a remarkable 7 kVrms (9.9 kVpk) with an improved process.

A unique ceramic/polymer composite isolation barrier also provides the industry’s best barrier resistance and virtually unlimited life. IL700V-Series isolators are certified under the stringent new VDE 0884-17 standard, UL1577 registered, and ATEX / IECEx certified for IS-to-IS intrinsically safe applications.

Main Features

  • High speed: 110 Mbps
  • High temperature: −40 °C to +125 °C (“T” and “V” Series)
  • Very high isolation: 7 kVRMS Reinforced Isolation (V-Series)
  • 2.7 to 5.5 volt supply range
  • 100 kV/μs Common Mode Transient Immunity
  • No carrier or clock for low EMI emissions and susceptibility
  • 100 ps pulse jitter
  • 2 ns channel-to-channel skew
  • 10 ns typical propagation delay
  • 1.2 mA/channel typical quiescent current
  • 44000 year barrier life
  • Excellent magnetic immunity
  • IEC 60747-17 (VDE 0884-17):2021-10 certified; UL 1577 recognized
  • 7 kVRMS Reinforced Isolation; 1.2 kVRMS Working Voltage (V-series)
  • ATEX / IECEx certified for IS-to-IS intrinsically safe applications
  • 0.15" and 0.3" True 8™ mm 16-pin SOIC; 16-pin QSOP packages
Documents Tech question

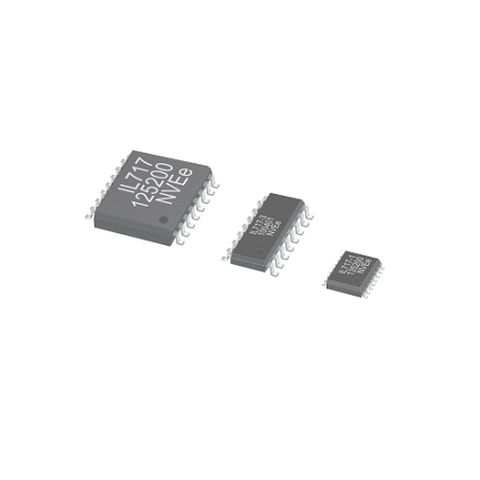

NVE IL715 716 717

7 kV Isolators

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

Technologies

  • Shutterstock 755896279

    Analog, mixed signal & sensor ICs

  • Shutterstock 24035881

    Interface ICs

NVE

NVE is a leader in the practical commercialization of spintronics, a nanotechnology that relies on electron spin rather than electron charge to acquire, store and transmit information.

Read more
NVE Logo

Documents

  • NVE il71x family datasheet
