4G IoT modem for sensor control with IP67

05/02/2021

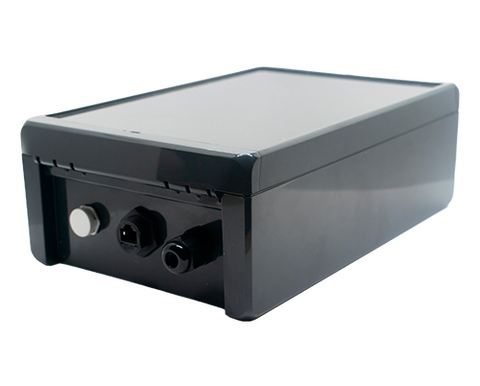

The MTX-StarSensor is an innovative and powerful solution with ultra Low Power and primary batteries with 10 years autonomy. The IP67 casing allows it to be used in any environment regardless of dust, humidity or water. Thanks to MTX-Tunnel firmware with improved Ultra Low Power and power management features, the device can handle up to 2x analog sensors for years, without the need for external power. The modem has the ability to record data, which can be stored locally or sent remotely via 4G.

Documents Tech question
MTX Star Sensor

4G IoT modem for sensor control with IP67

  • Features
  • Applications
  • Technologies
  • Documents
  • DC input: 7.2 to 30Vdc (36Vdc optional)
  • Temperature range: -30º to +85ºC
  • Dimensions: 261x169x91mm
  • Weight: 3.6kg
  • MTX-StarSensor is manufactured with ISO-9001 & ISO-14001 certifications and is RoHS/WEEE compliant.
  • LTE 5 Bands (700, 800, 900, 1800, 2100MHz), GSM/GPRS/EDGE: 2 Bands (900, 1800MHz)
  • LTE Cat.1: DL 10.2Mbps, UL 5.2Mbps
  • HSPA (3GPP release 6,7): DL 7.2Mbps, UL 5.7Mbps; HSDPA Cat.8/HSUPA Cat.6
  • UMTS (3GPP release 4): PS data rate 384 kbps DL, UL 384kbps
  • GPRS (EU only): DL 85.6kbps, UL 85.6kbps
  • SMS: text and PDU mode support

Applications & Markets

  • 9 Remote Monitoring

    Remote Monitoring

Technologies

  • Shutterstock 441631708

    Industrial wireless & cellular

Documents

  • MTX starsensor datasheet
