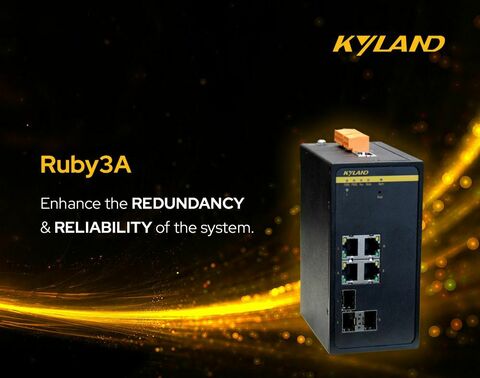

3G port managed redundancy box

29/09/2023

Ruby3A from Kyland is specially designed for reliable industrial networking realizing both PRP (Parallel Redundancy Protocol) and HSR (High-availability Seamless Redundancy) which are defined in IEC62439-3. The Ruby3A provides the ultimate in network reliability and zero failover time from network faults. Full FPGA hardware solution enables Kyland Ruby3A low switching latency and PRP/HSR is selectable via software with the same hardware platform. Precision time synchronization in accordance with IEEE 1588v2 is supported on Kyland Ruby3A.

Main Features

  • Compliant implementation of both PRP (IEC62439-3-4) and HSR (IEC62439-3-5)
  • Supports combo ports as HSR/PRP port
  • Supports hardware based IEEE1588v2
  • Supports reset button for system reboot
  • Out of Band Management Port
  • Complies with IEC61850-3 and IEEE1613
Documents Tech question
Kyland Ruby3 A

3G port managed redundancy box

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • 7 Io T Industry 4 0

    IIoT & Industry 4.0

Technologies

  • Shutterstock 557910970

    Industrial controls networking

Kyland - KLG Smartec

Kyland is a leading innovator of solutions in the field of industrial networking technology. Kyland builds the next generation industrial control ecosystems.

Read more
KLG Smartec logo

Documents

  • Kyland Ruby3 A Datasheet EN
