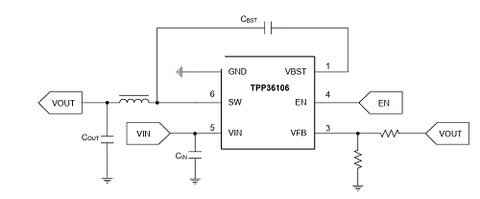

36V, 1A Synchronous DC/DC Converter

09/05/2025

The TPP36106x series is a simple, easy-to-use, 1-A output, synchronous, step-down, and switch-mode converter with internal power MOSFETs.

The TPP36106x integrates low-RDS(ON) power transistors in the TSOT23-6 package with internal soft-start, compensation, and protection features. The TPP36106x offers a very compact solution to achieve a 1-A continuous output current over a wide input supply range, with excellent load and line regulation.

The TPP36106 has different versions of switching frequency at 500-kHz, 1-MHz, and 2.2-MHz, and also supports light load PSM to save quiescent current and forced-PWM mode to maintain fixed switching frequency.

The device is available in the 6-pin TSOT23-6 package with the support of a wide operation ambient temperature range from −40 °C to 125 °C.

Main Features

  • Wide supply voltage: 4.5V to 36V
  • Internal Power FET:180mΩ and 90mΩ
  • Fixed Switching Frequency: 500kHz (TPP361062), 1MHz, 2.2MHz
  • 0.6V reference voltage with 2% accuracy
  • Low 2uA shutdown, 70uA quiescent current
  • Light load forced PWM mode or power save mode options available
  • Over Temperature and Current Limit protection
Documents Tech question
3 Peak TPP36106

36V, 1A Synchronous DC/DC Converter

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • Shutterstock 403226329 Converted

    Power conversion

Technologies

  • Shutterstock 2049802019 Converted

    DC/DC converters

3Peak

3PEAK is committed to the research and development of high-performance, high-quality, and highly reliable integrated circuit products, including signal chains, power analog chips, mixed-signal front-ends, and embedded processors to provide customers with all-around solutions.

Read more
3peak Logo

Documents

  • 3 Peak TPP36106 Datasheet
