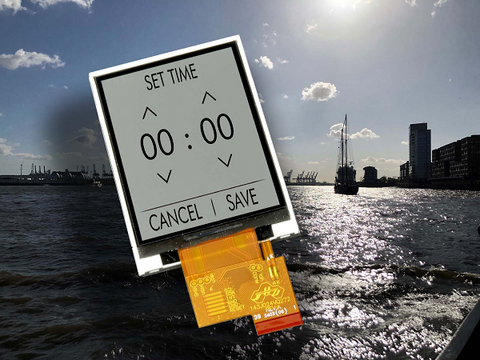

The newly developed 2.4-inch TFT colour display is particularly suitable for mobile use due to its low energy consumption. It requires only 10 mA power consumption at 3.3 V and shows sharp contrasts even in sunlight.
With the EA TFT024-23ATNN, DISPLAY VISIONS GmbH has a particularly economical colour display for use in mobile devices in its range. It is very easy to read both with and without backlight. Without backlight, the power consumption is only 35 mW. During an eight-hour working day, this burdens a LiPo battery with no more than 75 mAh. The positive TFT panel with a white background can be operated both in colour and in black and white. As a transflective display, it also uses the incident light for a high-contrast display in addition to the integrated backlight. Even in bright sunlight, the display can therefore be clearly read from wide angles.
The resolution of the 2.4 inch display is 240x320 RGB pixels. It is a total of about 43 mm wide and 60 mm high. It is connected to the driver electronics via a FPC cable. In addition to the standard RGB interface, a pin-saving 4-wire SPI interface and a parallel µC data bus with 8- or 16-bit width are available.
Display Visions (previously Electronic Assembly) markets a broad spectrum of top-quality industrial displays to customers in a number of industries ranging from process automation and machinery manufacturing to IT.
