28 port layer 2/3 managed rack mountable modular switches

19/11/2021

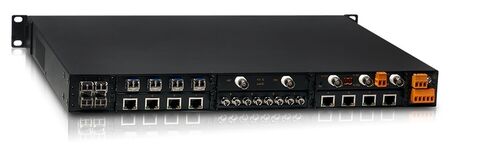

SICOM3028GPT is a intelligent modular platform which is an All-in-One solution integrating IEEE1588v2, Sync-E, full gigabit, and both layer 2 & Layer 3 availability specifically designed to operate reliably in electrically harsh and climatically demanding utility substation and industrial environments. SICOM3028GPT supports up to 28 gigabit fiber/copper ports, meets the IEC61850 and IEEE1613 standards. SICOM3028GPT is a 19-inch 1U rack mountable device and supports one 1U slot and six 0.5U slots which offers the maximum flexibility for easy expansion.SICOM3028GPT supports IEEE1588v2 and synchronous Ethernet protocol with hardware time stamping and supports the BC, P2P TC, and E2E TC clock modes, it reaches a timing precision of 100 ns.

Main Features

Flexible modular design for easy expansion, supports max 28 gigabit fiber/copper ports.
Supports DT-Ring ,DRP, MSTP and VRRP for network redundancy.
Supports Layer 3 routing protocols such as RIP and OSPF.
Supports IEEE1588v2 and the synchronization precision reaches ±100 ns, with SW based PTP 1588 and optional HW based PTP 1588.
Supports ITU-T.G.8261/G.8262 synchronous Ethernet and the synchronization precision reaches ±50 ns.
Supports HSR/PRP module, TimeServer module, GPS module, IRIG-B module, TMS-trigger module, Serial server module.
Supports Hot-Swappable Power Supplies.
Supports IEC61850 MMS management.
Supports cable test.
Complies with IEC61850-3 and IEEE1613.
KEMA, CE, FCC, EN50155/EN50121, NEMA-TS2.

Documents Tech question

Applications & Markets

Technologies

Industrial controls networking

Kyland - KLG Smartec

Kyland is a leading innovator of solutions in the field of industrial networking technology. Kyland builds the next generation industrial control ecosystems.

Documents

Kyland SICOM3028 GPT Datasheet EN
