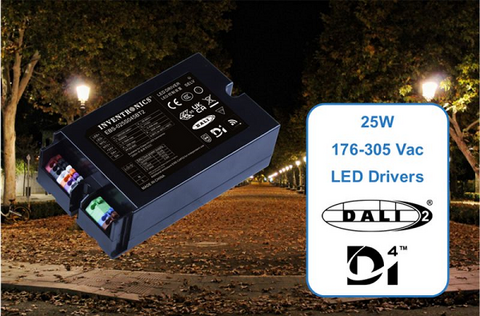

25W Class I/II NFC Driver with DALI-2 and D4i

14/10/2022

Inventronics expands low power, Dali 2, IP20 LED drivers to include models supplying 25W of power. The EBS-025SxxxBT2 offers three programmable models delivering the full 25W of power at a wide output current range from 300-1050mA. Created for many lighting applications including

street, tunnel and low bay, etc., this family provides integrated AC power monitoring with an auxiliary voltage and dim-to-off functionality for powering low voltage, wireless controls.

Main Features

  • Full Power at Wide Output Current Range (Constant Power)
  • Adjustable Output Current (AOC) with NFC
  • DALI-2 and D4i Certified
  • AC Dim/3-Timer-Modes Dimmable
  • Dim-to-Off with Standby Power ≤ 0.5W
  • Always-on Auxiliary Power: 24Vdc,125mA,3W (Transient Peak Power up to 10W)
  • Integrated 16Vdc Bus Power Supply based on DALI-2
Documents Tech question
Inventronics EBS 025 Sxxx BT2

25W Class I/II NFC Driver with DALI-2 and D4i

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 18 Traffic Transportation

    Traffic & Transportation

  • 1 Lighting Illumination

    Lighting & Illumination

Technologies

  • Shutterstock 767486674

    LED light sources

Inventronics

Inventronics is one of the world's top LED driver manufacturers specializing in building innovative, highly reliable and long-life products that are certified compliant to all major international safety and performance standards.

Read more
Inventronics Logo

Documents

  • Inventronics EBS 025 Sxxx BT2 Datasheet
