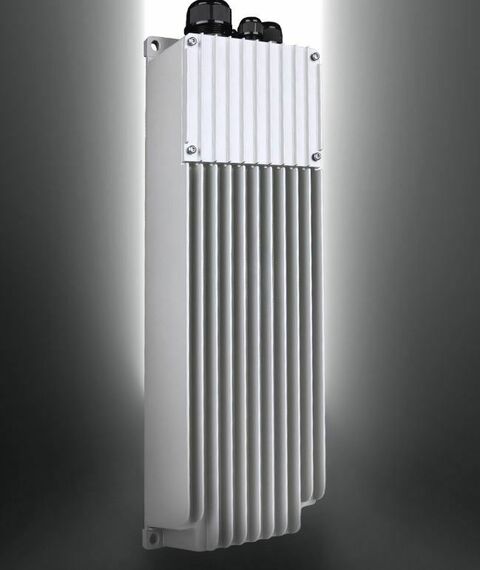

1800W Flagship LED Driver NES-1K8 for Sports Lighting

09/06/2023

The NES-1K8TxxxBC series is a 1800W, 3 channels, constant-current, programmable and IP66 LED driver that operates from 198-457 Vac input with excellent power factor. Created for many lighting applications includingsports, high mast, UV-LED, aquaculture and horticulture, etc. The dimming control supports two-way communication via DALI-2 and complies with D4i, furthermore it incorporates DMX-RDM dimming. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, input under voltage, input over voltage, output over voltage, short circuit, and over temperature.

Main Features

  • Non-Isolated Class I driver
  • No Afterglow
  • Dim-to-Off with Standby Power ≤ 0.5W @ 230Vac
  • Dimming Range: 0.4%-100%
  • 3*600W Independent Programmable Channels & Support
  • Common Anode Output Connection
  • Max Remote Distance Up to 300 Meters
  • Ultra High Efficiency (Up to 97%)
  • Full Power at Wide Output Current Range (Constant Power)
  • Adjustable Output Current (AOC) via DALI/DMX-RDM
  • DALI-2 and D4i Certified & DMX-RDM & 3-Timer-Modes Dimmable
  • Single-channel (1*DT6 or 1*DMX) Operating Mode
Documents Tech question
Inventronics NES 1 K8

1800W Flagship LED Driver NES-1K8 for Sports Lighting

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 1 Lighting Illumination

    Lighting & Illumination

Technologies

  • Shutterstock 1836572383

    LED power drivers & controls

Inventronics

Inventronics is one of the world's top LED driver manufacturers specializing in building innovative, highly reliable and long-life products that are certified compliant to all major international safety and performance standards.

Read more
Inventronics Logo

Documents

  • Inventronics NES 1 K8 Txxx BC Datasheet
