150W power module offers unbeatable combination of high power and compact size

26/07/2024

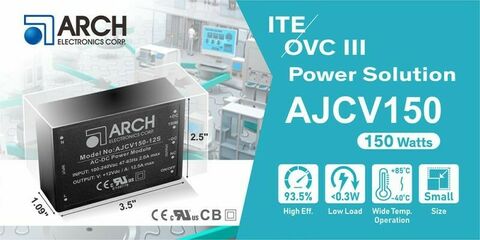

Introducing the AJCV150, ARCH’s 150W power supply module that stands unparalleled in the industry. As the only 150W power module on the market, it offers an unbeatable combination of high power and compact size, matching the dimensions of our AJCV100 model. This makes it an ideal choice for a wide range of applications without compromising on space or performance.

The AJCV150 addresses common challenges faced by product engineers, such as:
- Space Constraints: By offering 150W power in the same compact size as the AJCV100, it frees up valuable space for other components.
- Energy Efficiency: Its high efficiency reduces energy consumption and heat dissipation, improving overall system performance and longevity.
- Flexibility and Control: Adjustable output voltage and remote control capabilities provide the flexibility needed for diverse applications.
- Safety and Reliability: High isolation, OVC III compliance, and rigorous safety approvals ensure your equipment operates safely and reliably even in challenging environments.

Main Features

  • Universal Input Range 90-264VAC or 127-370VDC, 47-63 Hz
  • Remote ON/OFF Control
  • Adjustable Output Voltage
  • I/O Isolation 4300VAC
  • Operating Ambient Temperature Range -40°C to +85°C
  • No Load Power Consumption < 0.3W (AJCV150)/ No Load Power Consumption < 0.15W (AJCV100)
  • 5000m Altitude Application
  • Over-Voltage Category OVC III
  • High Efficiency up to 93.5%
  • Isolation Class II
  • EMC Compliant without External Components
  • Safety Approval to UL / IEC / EN 62368-1
  • Design meet .IEC / EN 61558 (AJCV150)/ Design meet .IEC / EN 61558-1, IEC / EN 61558-2-16, IEC / EN 60335-1 (AJCV100)
    3-Year Product Warranty
