- Height range: 2.1 mm to 8.5 mm
- A, B, E, and M keying options for module cards
- One-action latch for time and cost savings
- PCI-SIG PCIe M.2 specification compliant
- 0.5 mm pitch featuring sixty-seven contact points
This browser is not fully supported.
Alcom electronics appreciates the potential business relationship between our parties. Thank you! We want to make sure we address only the mailings that are valuable to you.

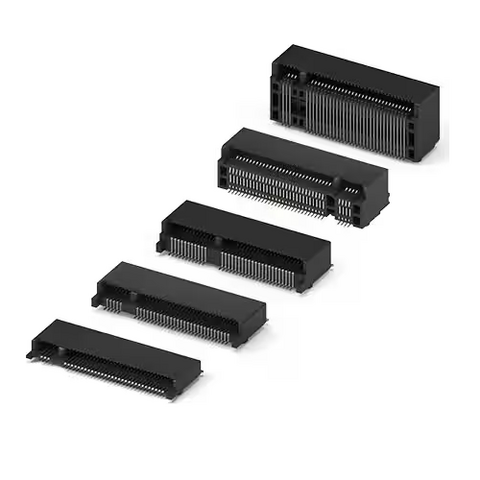

The M.2 NGFF connector supports diverse modules, including SSDs, Wi-Fi, GNSS, 5G, LTE, HSPA, and GSM. The M.2 NGFF connector is designed for ultra-thin products, offering significant PCB space savings over mini PCIe connectors. This compact connector enables high-speed data transmission with PCI Express 3.0, SATA 3.0, and USB 3.0 compatibility while meeting PCI-SIG PCIe M.2 specifications.
The one-action latch feature of the M.2 NGFF connector makes it easy to use and minimizes time and cost. This connector is the next evolution from mini and half-mini cards, providing optimal support for slender platforms. It can accommodate Wi-Fi, Bluetooth, wireless WAN, and SSD devices while boosting performance in terms of PCIe Gen 3, SATA 3, SATA I/O, and USB 3.0.
ATTEND Technology is the leading provider of professional connectivity solutions specialized in various connectors and cable products, including memory card socket, PCB card socket, I/O connector, M-series connector, and cable assembly.
